Product overview
HXD-LCD HX037WV0002B-A is a TFT LCD module for OEM and ODM display integration. Verified specifications should be taken from the published datasheet.
5 product images · Select a thumbnail to enlarge
TFT LCDHX037WV0002B-A

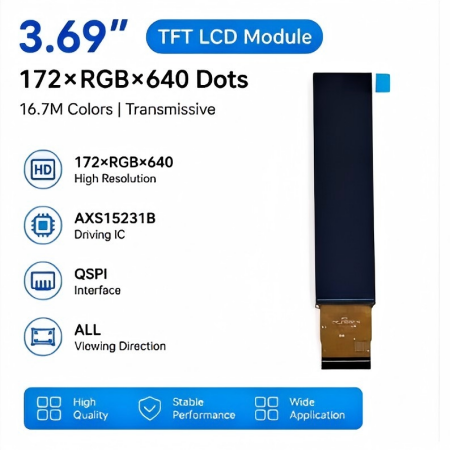

3.69-inch resolution 172 * 640TFT display screen

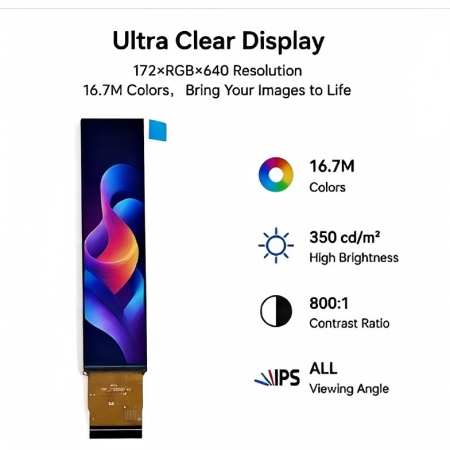

Our 3.69" TFT LCD module uses transmissive TFT technology to present vivid and rich color performance. The QSPI interface greatly reduces the number of control pins, which helps simplify your hardware design and save MCU IO resources. Powered by AXS15231B driver IC, this 172x640 TFT display ensures stable screen operation. With 2.8V low typical working voltage, it is well-suited for battery-powered portable products. The all-viewing-angle design guarantees clear visual effect no matter from which direction users watch the screen.
- Display size
- 3.69 inch
- Resolution
- 172*640
- Interface
- SPI
- Brightness
- 300 cd/m²
Technical highlights
172*640 resolution, SPI interface, -20°C to +70°C operating temperature
Customization options
Available customization includes interface and FPC design, cover glass, capacitive or resistive touch, backlight brightness, optical bonding, mechanical dimensions and operating-temperature options. Final availability must be confirmed by engineering review.
HXD LCD

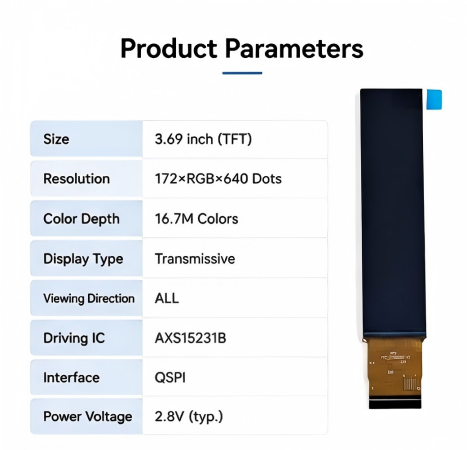

Technical specifications
- Model number
- HX037WV0002B-A
- Category
- TFT LCD
- Display size
- 3.69 inch
- Resolution
- 172*640
- Interface
- SPI
- Brightness
- 300 cd/m²
- Operating temperature
- -20°C to +70°C
- Display type
- IPS
- Viewing angle
- ALL
- Driver IC
- AXS15231B
- Touch panel
- whintout

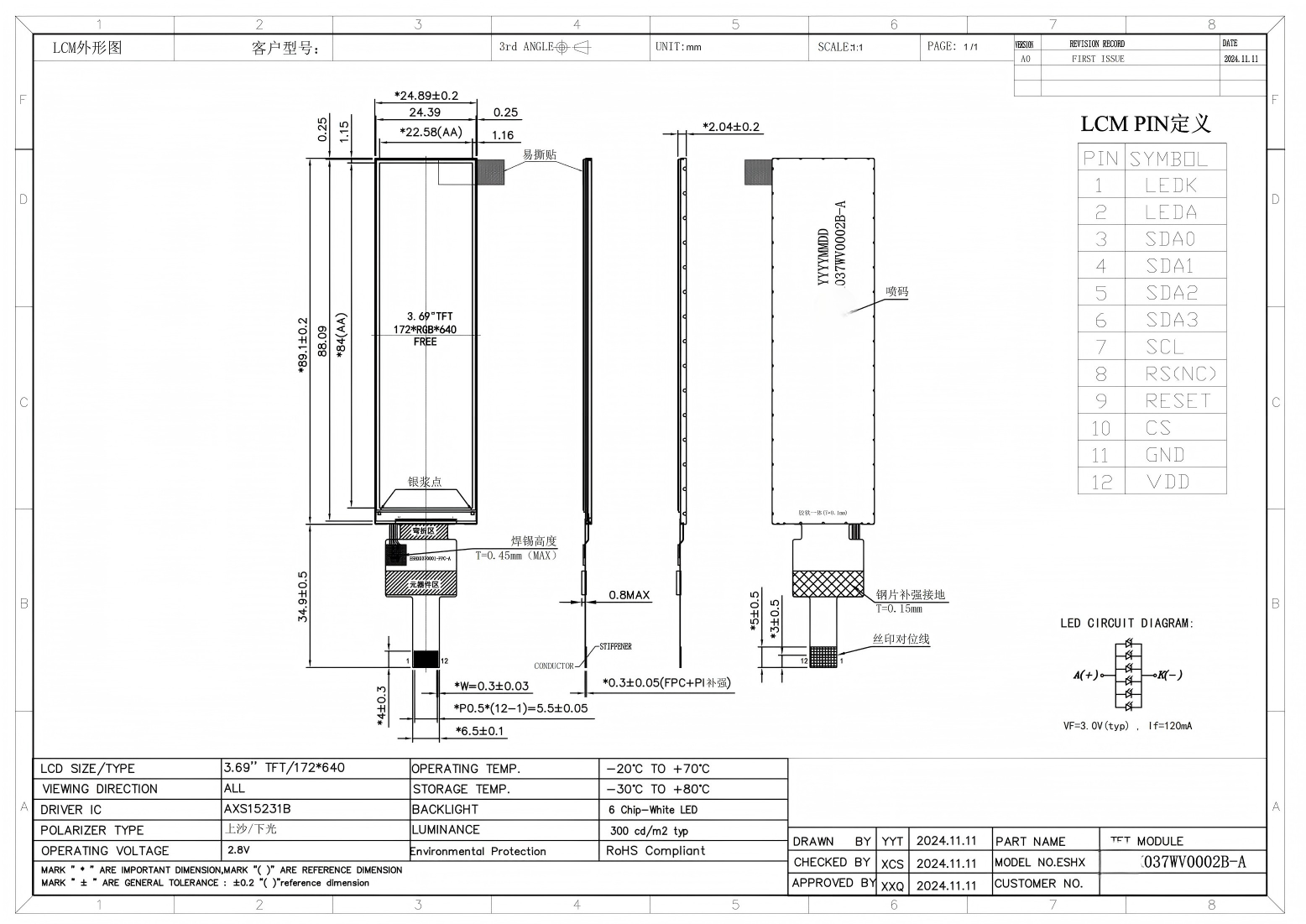

- Outline dimensions
- 24.89x89.1x 2.04
- Active area
- 22.58x84.0
- Supply voltage
- 2.8v
- Light source
- 6 White LED
- Mounting type
- FPC
- Panel brand
- BOE
- Origin
- Guangdong, China
- Supply type
- OEM / ODM
- Brand
- HXD LCD
- Display mode
- 3.69 inch
- Backlight
- 6 White LED
- Luminance
- 300 cd/m2
- MOQ
- 100pcs
- Lead time
- 15days
Gallery
Product images
All product images uploaded through the admin.
Frequently asked questions
Can the HX037WV0002B-A be customized?
Yes. HXD-LCD can evaluate interface, FPC, touch panel, cover glass, backlight and mechanical customization based on project requirements.
Is a datasheet available for the HX037WV0002B-A?
The latest available datasheet can be downloaded from this product page or requested from the HXD-LCD sales team.
Does HXD-LCD support samples and mass production?
Yes. Sample evaluation and volume-production support are available, subject to model availability and project review.
