Product overview
HXD-LCD SHX037WQ0005A-A is a TFT LCD module for OEM and ODM display integration. Verified specifications should be taken from the published datasheet.
6 product images · Select a thumbnail to enlarge
TFT LCDSHX037WQ0005A-A
3.7-inch TFT display with a resolution of 240×960
This is a **3.71 inch transmissive TFT LCD module** with 240×RGB×960 dots resolution, supporting 16.7M rich colors. It adopts **AXS15231 driving IC** and **MIPI interface**, with typical working voltage of 2.8V. It features all viewing direction to deliver consistent image from alThis is a **3.71 inch transmissive TFT LCD module** with 240×RGB×960 dots resolution, supporting 16.7M rich colors. It adopts **AXS15231 driving IC** and **MIPI interface**, with typical working voltage of 2.8V. It features all viewing direction to deliver consistent image from all angles. This small-size MIPI TFT display has fast data transmission performance, suitable for portable instruments, smart home terminals, handheld equipment and other embedded projects. Customization service like FPC, backlight and touch panel is available.l angles. This small-size MIPI TFT display has fast data transmission performance, suitable for portable instruments, smart home terminals, handheld equipment and other embedded projects. Customization service like FPC, backlight and touch panel is available.
- Display size
- 3.71 inch
- Resolution
- 240×960
- Interface
- MIPI
- Brightness
- 280 cd/m²
Technical highlights
240×960 resolution, MIPI interface, -20°C to +70°C operating temperature
Customization options
Available customization includes interface and FPC design, cover glass, capacitive or resistive touch, backlight brightness, optical bonding, mechanical dimensions and operating-temperature options. Final availability must be confirmed by engineering review.
HXD LCD
Technical specifications
- Model number
- SHX037WQ0005A-A
- Category
- TFT LCD
- Display size
- 3.71 inch
- Resolution
- 240×960
- Interface
- MIPI
- Brightness
- 280 cd/m²
- Operating temperature
- -20°C to +70°C
- Display type
- IPS
- Viewing angle
- ALL
- Driver IC
- AXS15231
- Touch panel
- Whiteout

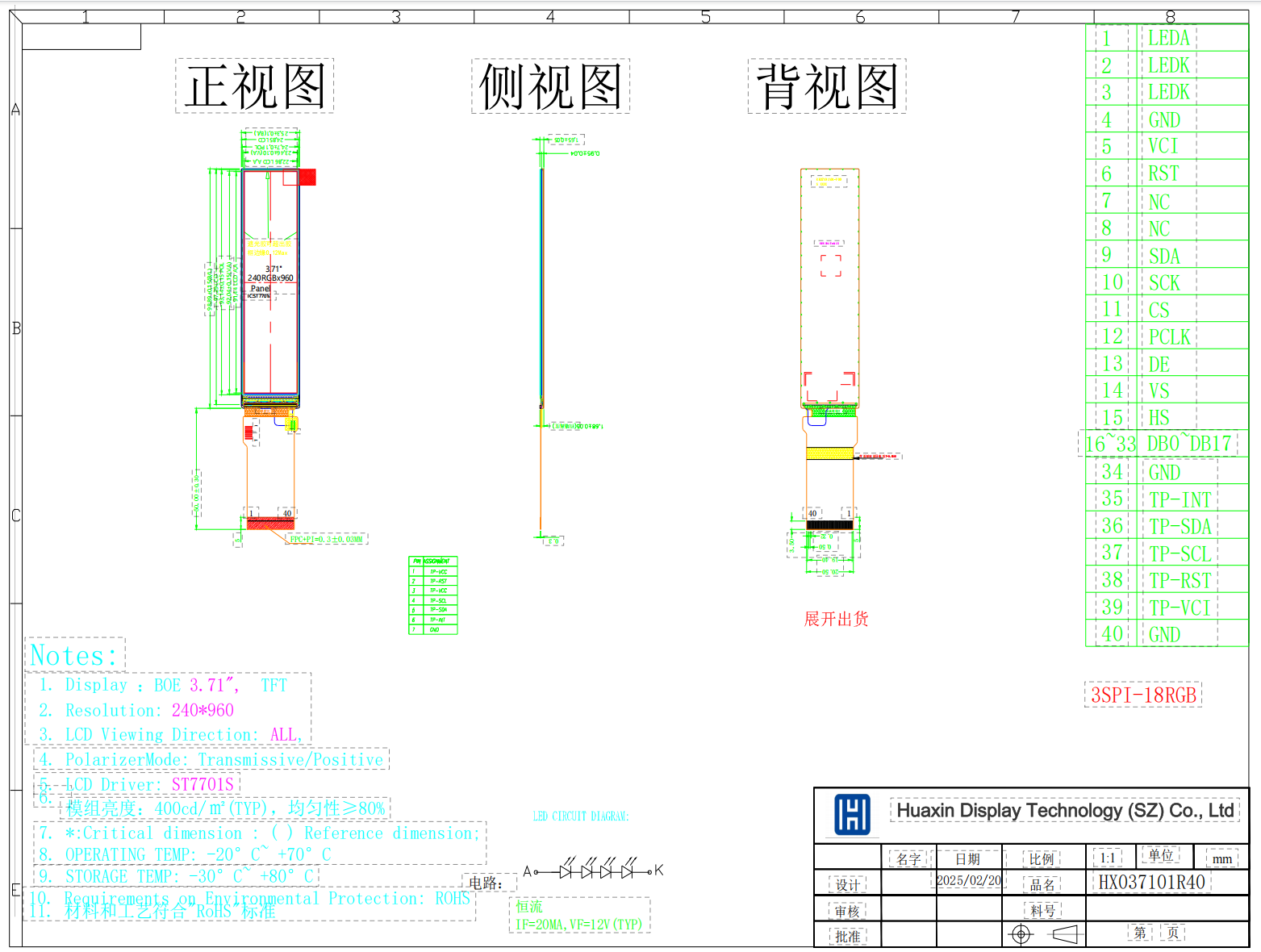

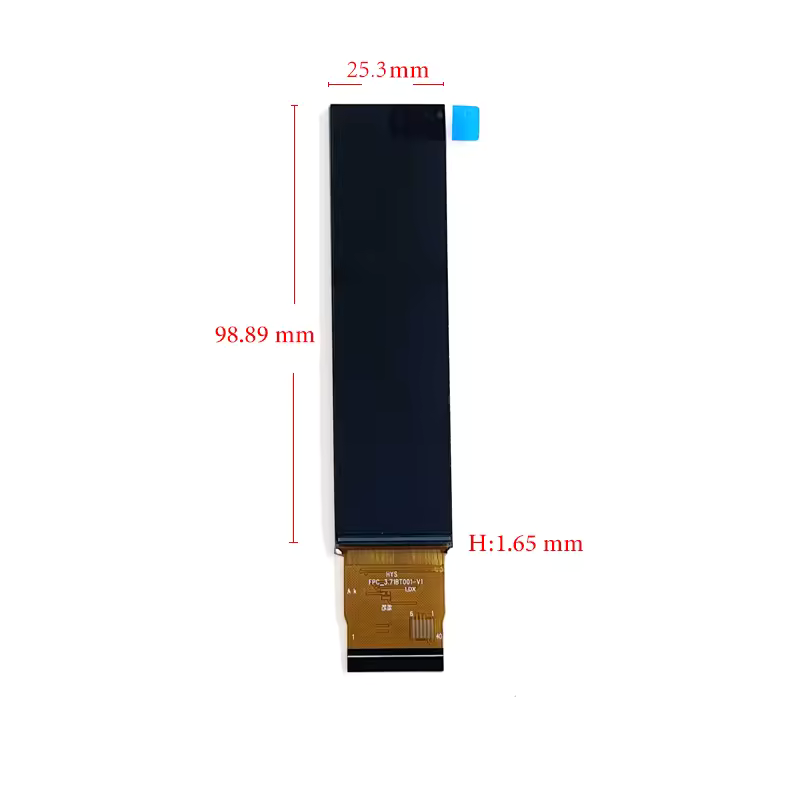

- Outline dimensions
- 25.30x98.89x 2.05
- Active area
- 22.86x91.44
- Supply voltage
- 2.8v
- Light source
- 4 white led
- Mounting type
- FPC
- Panel brand
- BOE
- Origin
- Guangdong, China
- Supply type
- OEM / ODM
- Brand
- HXD LCD
- Backlight
- 4 white led
- Luminance
- 280 CD/m2
- MOQ
- 100pcs
- Lead time
- 15 days

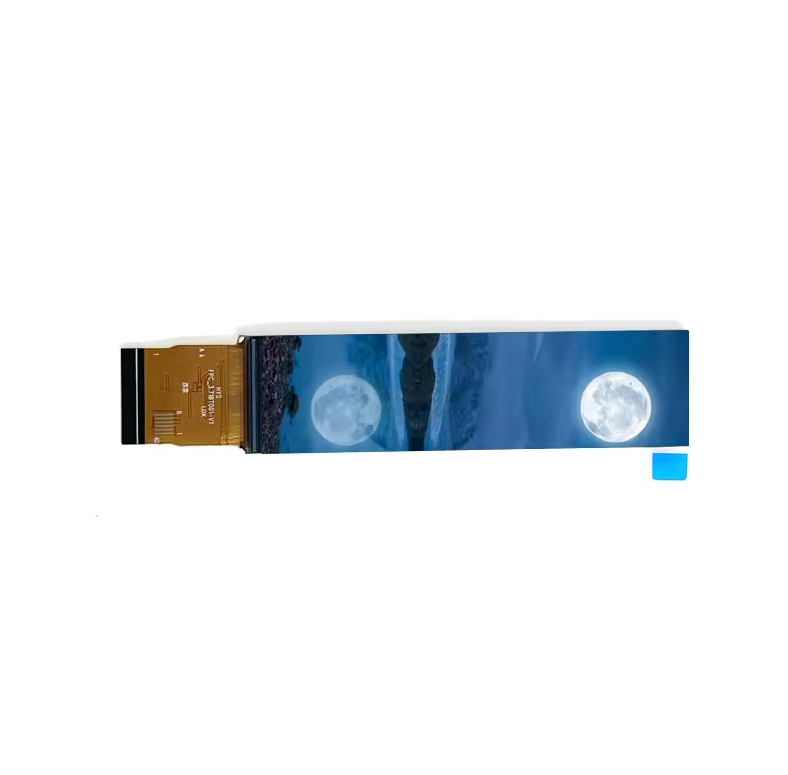

Gallery
Product images
All product images uploaded through the admin.
Frequently asked questions
Can the SHX037WQ0005A-A be customized?
Yes. HXD-LCD can evaluate interface, FPC, touch panel, cover glass, backlight and mechanical customization based on project requirements.
Is a datasheet available for the SHX037WQ0005A-A?
The latest available datasheet can be downloaded from this product page or requested from the HXD-LCD sales team.
Does HXD-LCD support samples and mass production?
Yes. Sample evaluation and volume-production support are available, subject to model availability and project review.
