Product overview
HXD-LCD H0349S005T005V3 is a TFT LCD module for OEM and ODM display integration. Verified specifications should be taken from the published datasheet.
6 product images · Select a thumbnail to enlarge
TFT LCDH0349S005T005V3

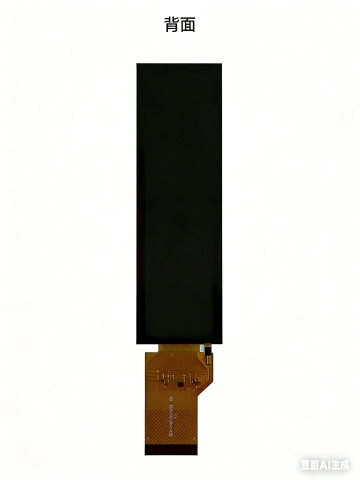

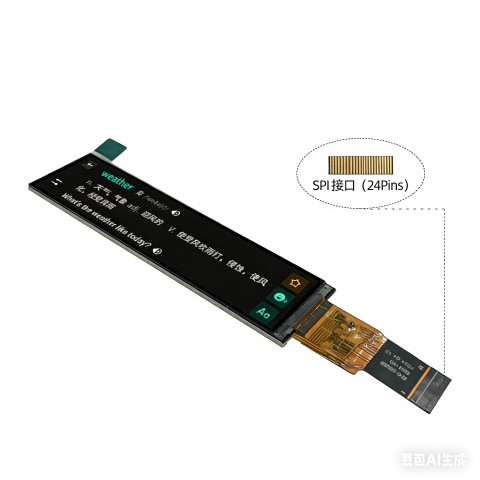

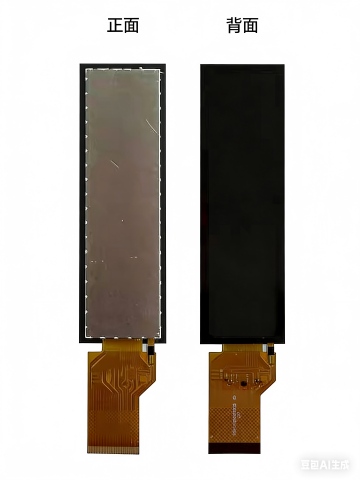

3.49 resolution 172 * 640 TFT LCD display screen
111
- Display size
- 3.49 inch
- Resolution
- 172*640
- Interface
- RGB
- Brightness
- 450 cd/m²
Technical highlights
172*640 resolution, RGB interface, -20°C to +70°C operating temperature
Customization options
Available customization includes interface and FPC design, cover glass, capacitive or resistive touch, backlight brightness, optical bonding, mechanical dimensions and operating-temperature options. Final availability must be confirmed by engineering review.
HXD LCD
Technical specifications
- Model number
- H0349S005T005V3
- Category
- TFT LCD
- Display size
- 3.49 inch
- Resolution
- 172*640
- Interface
- RGB
- Brightness
- 450 cd/m²
- Operating temperature
- -20°C to +70°C
- Display type
- IPS
- Viewing angle
- ALL
- Driver IC
- 15231
- Touch panel
- CTP

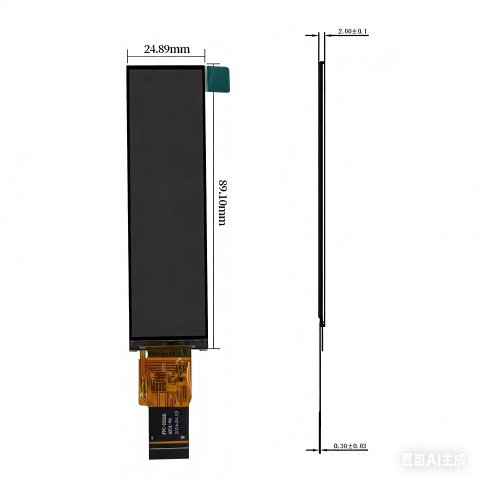

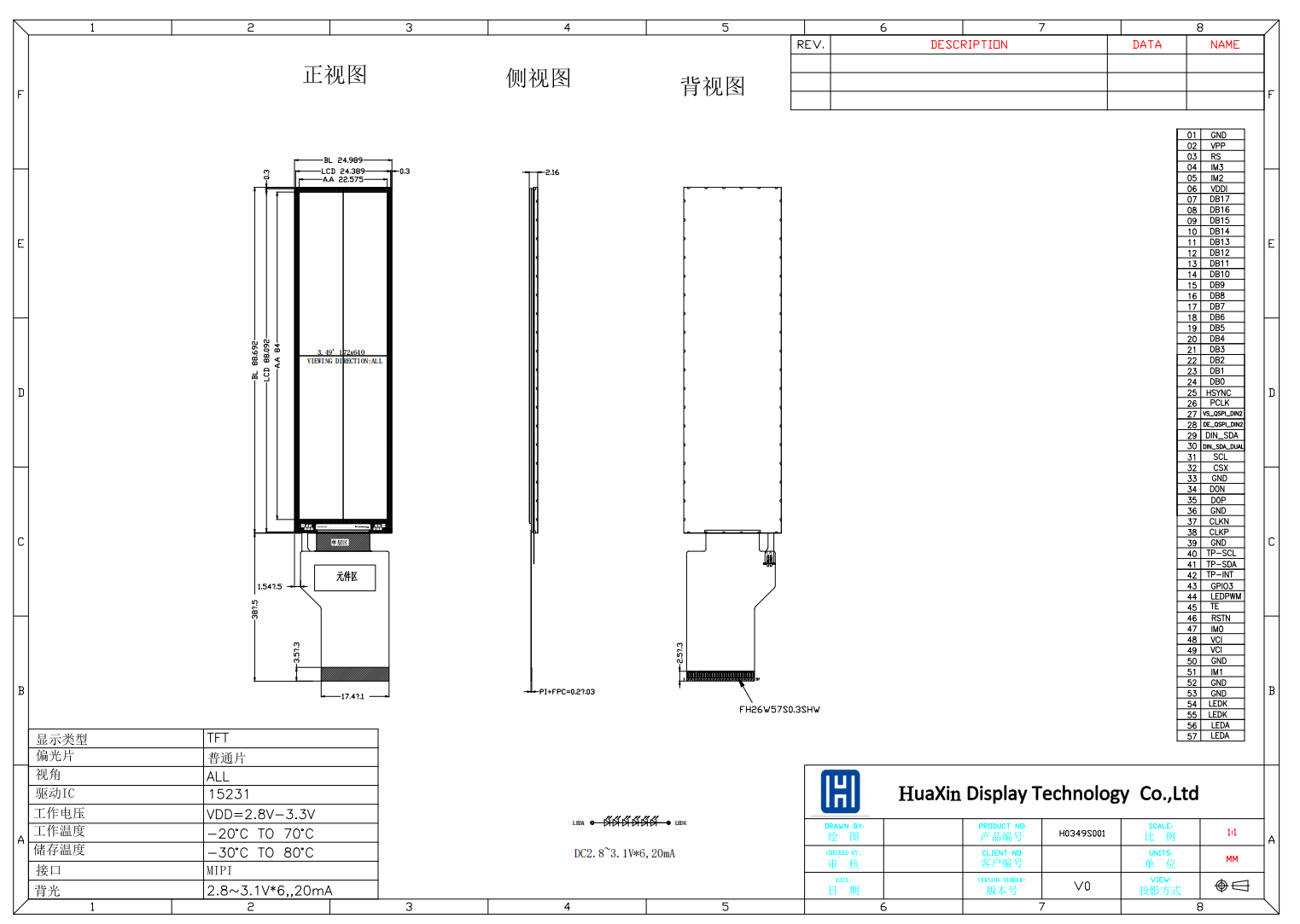

- Outline dimensions
- 24.989(H)×88.692(V)×2.01(T)
- Active area
- 22.575(H)×84(V)
- Supply voltage
- 3.3V
- Light source
- 6 White LED
- Mounting type
- FPC
- Panel brand
- BOE
- Origin
- Guangdong, China
- Supply type
- OEM / ODM
- Brand
- HXD LCD
- Screen dimensions
- 29.989(H)×93.692(V)×1.1(T)
- Backlight
- 6 White LED
- Luminance
- 450 cd/m2
- MOQ
- 100pcs
- Lead time
- 15 days
Gallery
Product images
All product images uploaded through the admin.
Frequently asked questions
Can the H0349S005T005V3 be customized?
Yes. HXD-LCD can evaluate interface, FPC, touch panel, cover glass, backlight and mechanical customization based on project requirements.
Is a datasheet available for the H0349S005T005V3?
The latest available datasheet can be downloaded from this product page or requested from the HXD-LCD sales team.
Does HXD-LCD support samples and mass production?
Yes. Sample evaluation and volume-production support are available, subject to model availability and project review.
