Product overview
HXD-LCD HD399001C40-V4 is a TFT LCD module for OEM and ODM display integration. Verified specifications should be taken from the published datasheet.
5 product images · Select a thumbnail to enlarge
TFT LCDHD399001C40-V4

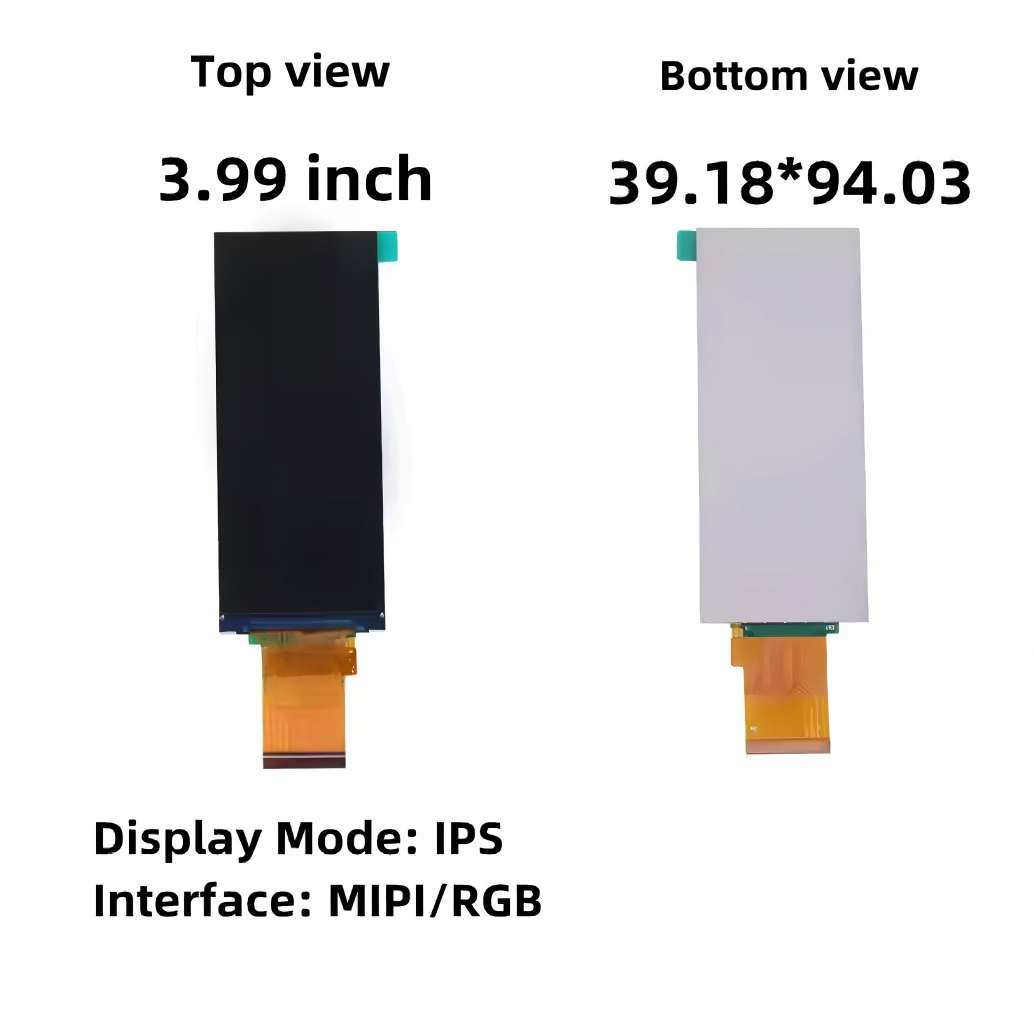

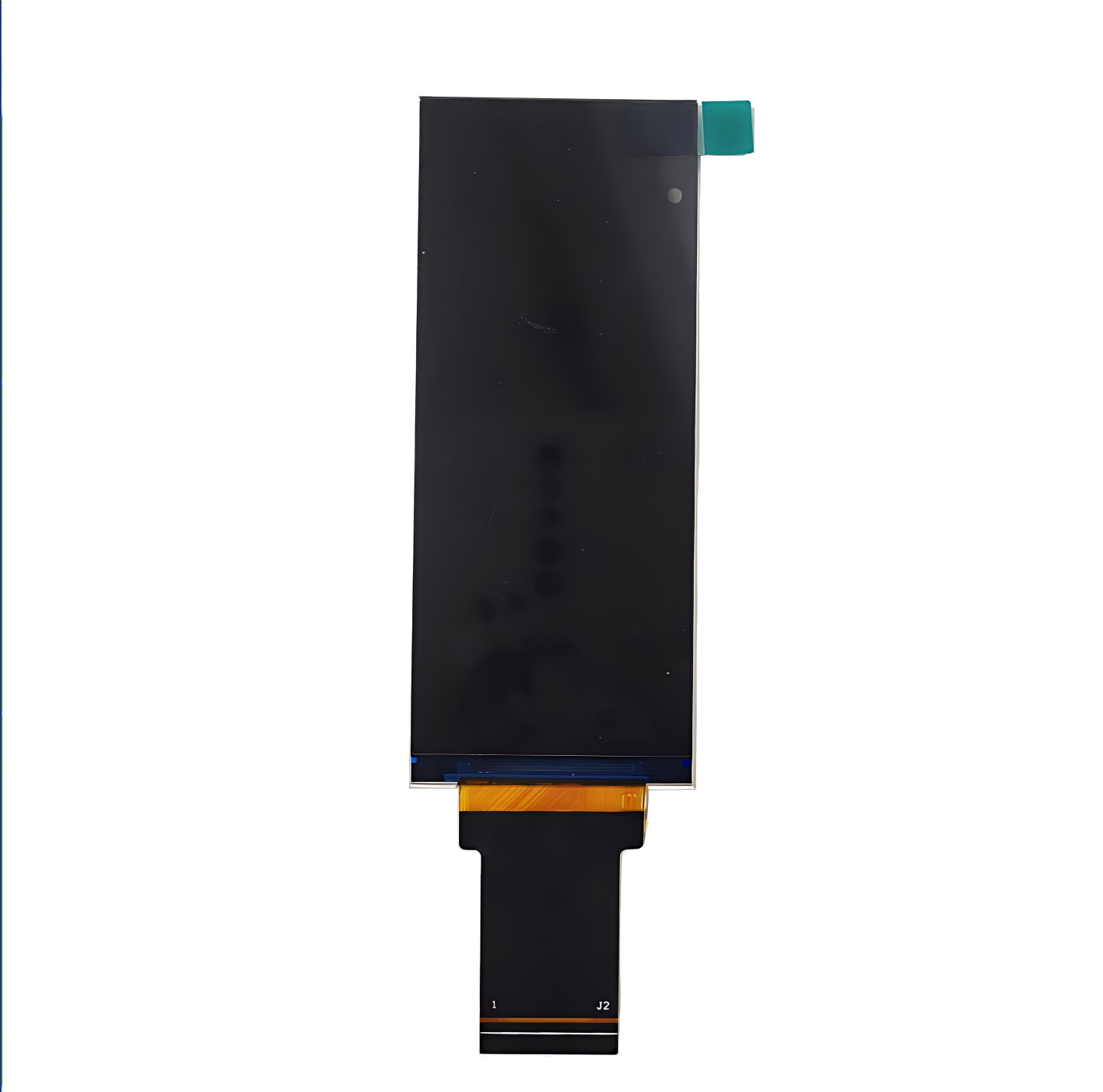

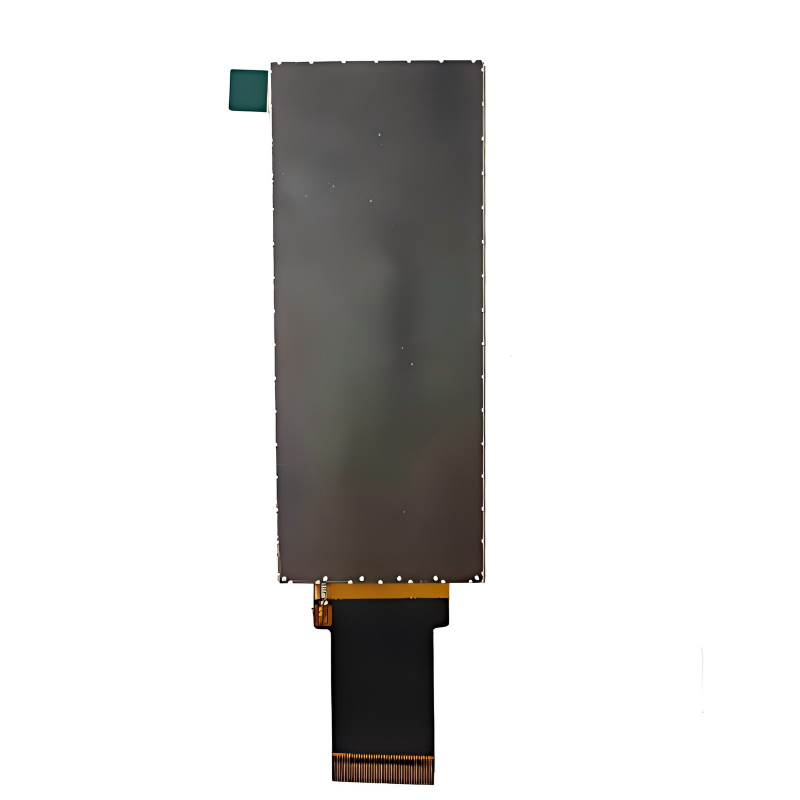

3.99-inch TFT display with a resolution of 400*960
111
- Display size
- 3.99 inch
- Resolution
- 400*960
- Interface
- MIPI
- Brightness
- 280 cd/m²
Technical highlights
400*960 resolution, MIPI interface, -20°C to +70°C operating temperature
Customization options
Available customization includes interface and FPC design, cover glass, capacitive or resistive touch, backlight brightness, optical bonding, mechanical dimensions and operating-temperature options. Final availability must be confirmed by engineering review.
HXD LCD
Technical specifications
- Model number
- HD399001C40-V4
- Category
- TFT LCD
- Display size
- 3.99 inch
- Resolution
- 400*960
- Interface
- MIPI
- Brightness
- 280 cd/m²
- Operating temperature
- -20°C to +70°C
- Display type
- IPS
- Viewing angle
- ALL
- Driver IC
- ST7701S
- Touch panel
- CTP

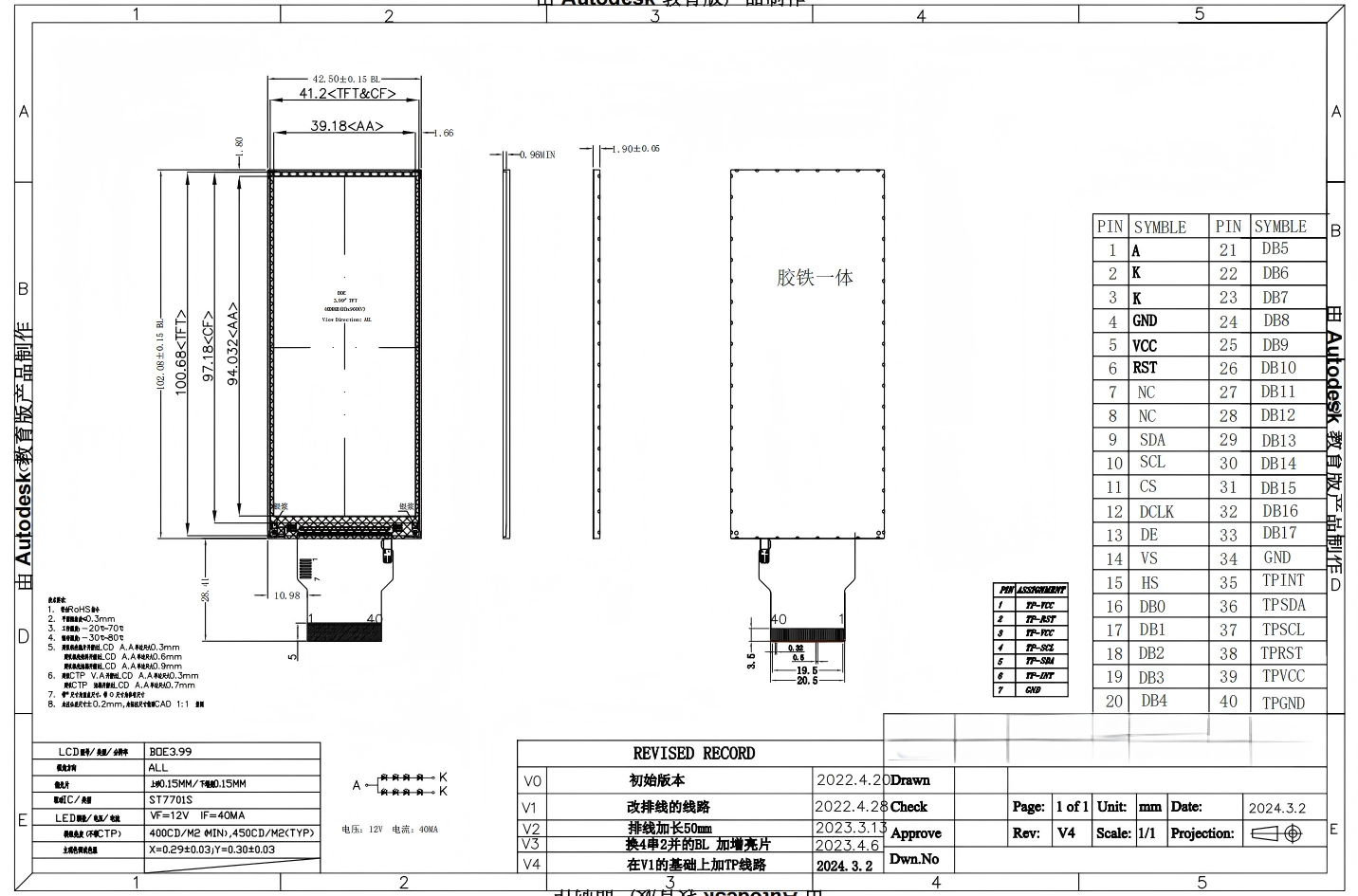

- Outline dimensions
- 42.50(H)x102.08(V
- Active area
- 39.18(H)x94.032(V
- Supply voltage
- 3.3V
- Light source
- 8WhiteLEDs
- Mounting type
- FPC
- Panel brand
- BOE
- Origin
- Guangdong, China
- Supply type
- OEM / ODM
- Brand
- HXD LCD
- Display mode
- 3.99 Inch
- Backlight
- 8WhiteLEDs
- Luminance
- 280 CD/m2
- Controller / Driver
- GT911
- MOQ
- 100pcs
- Lead time
- 15 days
Gallery
Product images
All product images uploaded through the admin.
Frequently asked questions
Can the HD399001C40-V4 be customized?
Yes. HXD-LCD can evaluate interface, FPC, touch panel, cover glass, backlight and mechanical customization based on project requirements.
Is a datasheet available for the HD399001C40-V4?
The latest available datasheet can be downloaded from this product page or requested from the HXD-LCD sales team.
Does HXD-LCD support samples and mass production?
Yes. Sample evaluation and volume-production support are available, subject to model availability and project review.
