2.1" 480×480 Round IPS TFT LCD Display

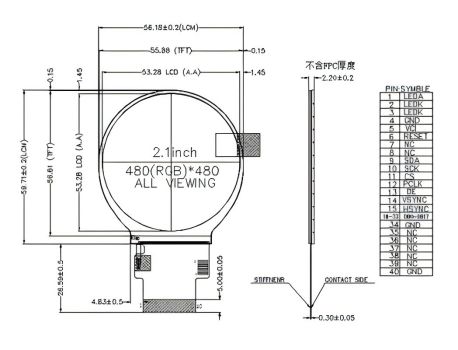

This 2.1-inch round IPS TFT LCD display module features a 480 × 480 resolution, 600 cd/m² brightness, and a transmissive IPS display structure. Equipped with the ST7701S driver IC, it supports a 24-bit RGB interface through a 40-pin connection, providing clear images, vivid colors, wide viewing angles, and stable display performance. The display has an active area of 53.28 × 53.28 mm and compact outline dimensions of 56.18 × 59.71 × 2.30 mm. It supports an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C. Its compact circular design is suitable for smart home control panels, intelligent switches, thermostats, wearable devices, medical equipment, audio systems, and other embedded products. HuaXin provides OEM and ODM services, including FPC, interface, backlight, touch panel, cover lens, and structural customization.

Display size: 2.1 inch
Resolution: 480 × 480
Interface: RGB
Brightness: 600 cd/m²

Product overview

This 2.1-inch round IPS TFT LCD module features a 480×480 resolution, 600 cd/m² brightness, transmissive display structure, ST7701S driver IC, and a 40-pin 24-bit RGB interface. With an active area of 53.28 × 53.28 mm and compact outline dimensions of 56.18 × 59.71 × 2.30 mm, it is suitable for smart control panels, intelligent switches, thermostats, medical equipment, audio systems, wearable devices, and embedded products. HuaXin offers OEM and ODM customization for the FPC, interface, backlight, touch panel, cover lens, and module structure.

Technical highlights

The 2.1-inch circular display combines a 480 × 480 resolution with 600 cd/m² brightness to provide clear and vivid graphical content within a compact round viewing area. Its transmissive IPS structure supports wide viewing angles, while the ST7701S driver IC and 40-pin 24-bit RGB interface enable stable integration with compatible embedded platforms. The compact 56.18 × 59.71 × 2.30 mm structure is well suited for space-constrained smart home, medical, wearable, and embedded applications.

Customization options

Custom FPC layout, length, shape, and pin definition Customized 24-bit RGB interface configuration Backlight brightness and power-consumption adjustment Optional touch panel integration Customized round cover lens size, color, and printing Optical bonding and air bonding support Customized module dimensions and mechanical structure Display assembly and system integration support Prototype development and mass-production services

HXD LCD

Technical specifications

Model number: HXD-T043000-03
Category: TFT LCD
Display size: 2.1 inch
Resolution: 480 × 480
Interface: RGB
Brightness: 600 cd/m²
Operating temperature: -20°C to +70°C
Applications: Smart home control panels Intelligent switches Smart thermostats Wearable devices Medical equipment Audio systems Circular user-interface terminals Embedded control systems Portable electronic devices Customized smart hardware
