2.76 round IPS display screen

This 2.76-inch square IPS TFT LCD display module features a 480 × 480 pixel resolution and supports up to 16.7 million colors. Equipped with the ST7701S driver IC, it supports a 3-wire SPI plus 18-bit RGB interface for integration with compatible embedded control platforms. The module has dimensions of 85 × 85 × 3.72 mm and integrates a G+F capacitive touch panel. Its touch surface provides a hardness rating of ≥6H for improved resistance to scratches during normal operation. IPS display technology provides clear images, vivid colors, and wide viewing angles, while the operating temperature range of -20°C to +70°C supports a variety of application environments. Typical applications include smart home devices, wearable electronics, industrial control equipment, medical devices, automotive displays, instrumentation, consumer electronics, and HMI terminals. HuaXin provides OEM and ODM services, including FPC, interface, backlight, touch panel, cover lens, and structural customization.

Display size: 2.76 inch
Resolution: 480(RGB)x480
Interface: RGB
Brightness: 300 cd/m²

Product overview

This 2.76-inch square IPS TFT LCD module features a 480×480 resolution, 16.7 million colors, ST7701S driver IC, and 3-wire SPI plus 18-bit RGB interface. The 85 × 85 × 3.72 mm module integrates a G+F capacitive touch panel with ≥6H surface hardness and supports an operating temperature range of -20°C to +70°C. It is suitable for smart home devices, industrial controls, medical equipment, automotive displays, instrumentation, consumer electronics, and HMI terminals. HuaXin provides OEM and ODM customization for the FPC, interface, backlight, touch panel, cover lens, and module structure.

Technical highlights

This 2.76-inch IPS TFT LCD combines a 480 × 480 resolution, 16.7 million colors, and a balanced square format for detailed graphical interfaces and interactive control systems. The ST7701S driver IC and 3-wire SPI plus 18-bit RGB interface provide flexible integration with compatible embedded platforms. Its integrated G+F capacitive touch panel offers responsive touch operation, while the ≥6H surface hardness improves scratch resistance for frequently operated devices.

Customization options

Custom FPC layout, length, shape, and pin definition Customized 3-wire SPI and 18-bit RGB interface configuration Backlight brightness and power-consumption adjustment Customized G+F capacitive touch panel Custom touch-panel size and touch interface Customized cover lens size, shape, color, and printing Optical bonding and air bonding support Customized module dimensions and mechanical structure Display assembly and embedded system integration support Prototype development and mass-production services

HXD LCD

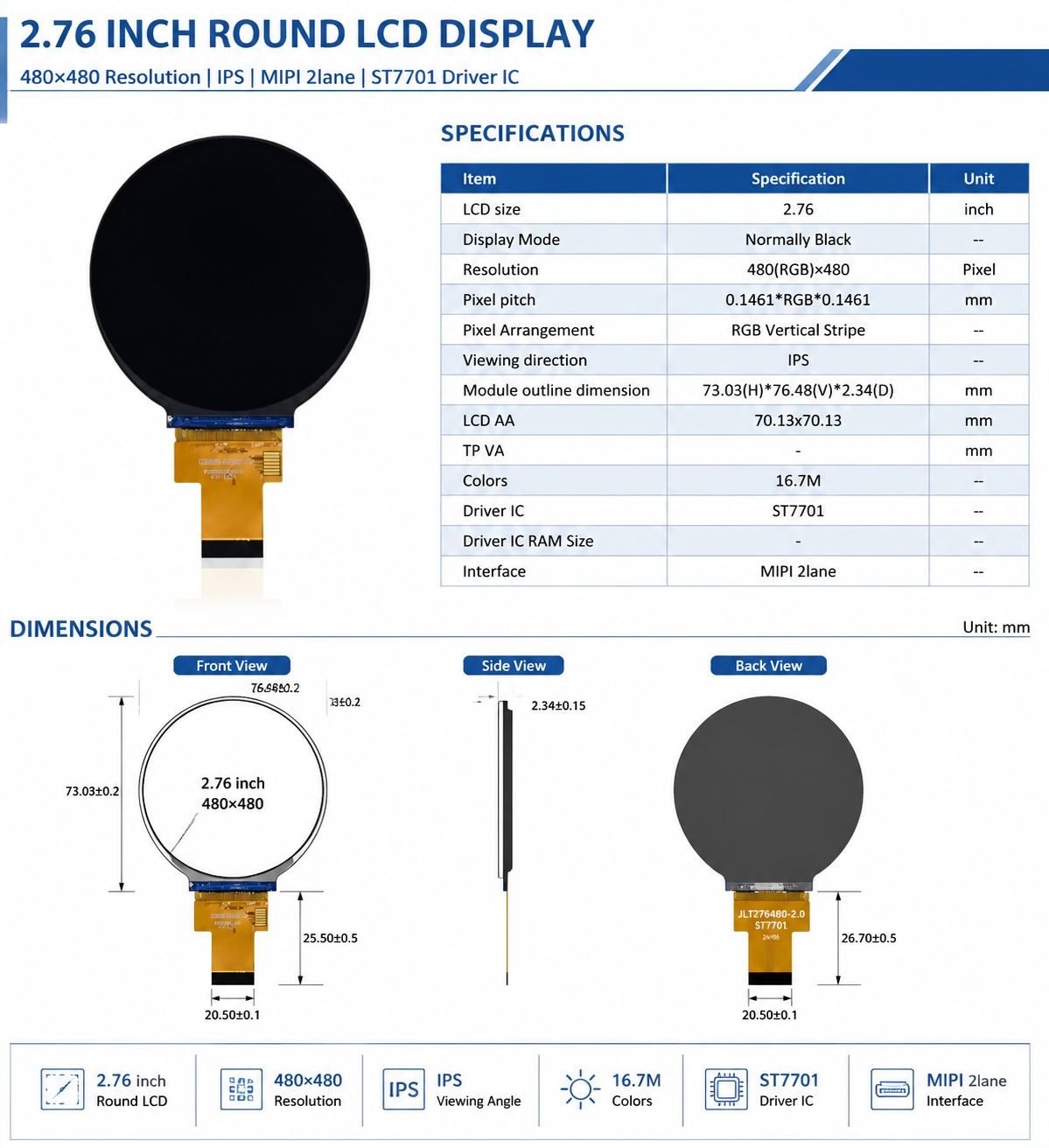

Technical specifications

Model number: HXC028BWV8483BCT3
Category: TFT LCD
Display size: 2.76 inch
Resolution: 480(RGB)x480
Interface: RGB
Brightness: 300 cd/m²
Operating temperature: -20°C to +70°C
Display type: IPS
Viewing angle: ALL
Driver IC: ST7701
Touch panel: CTP

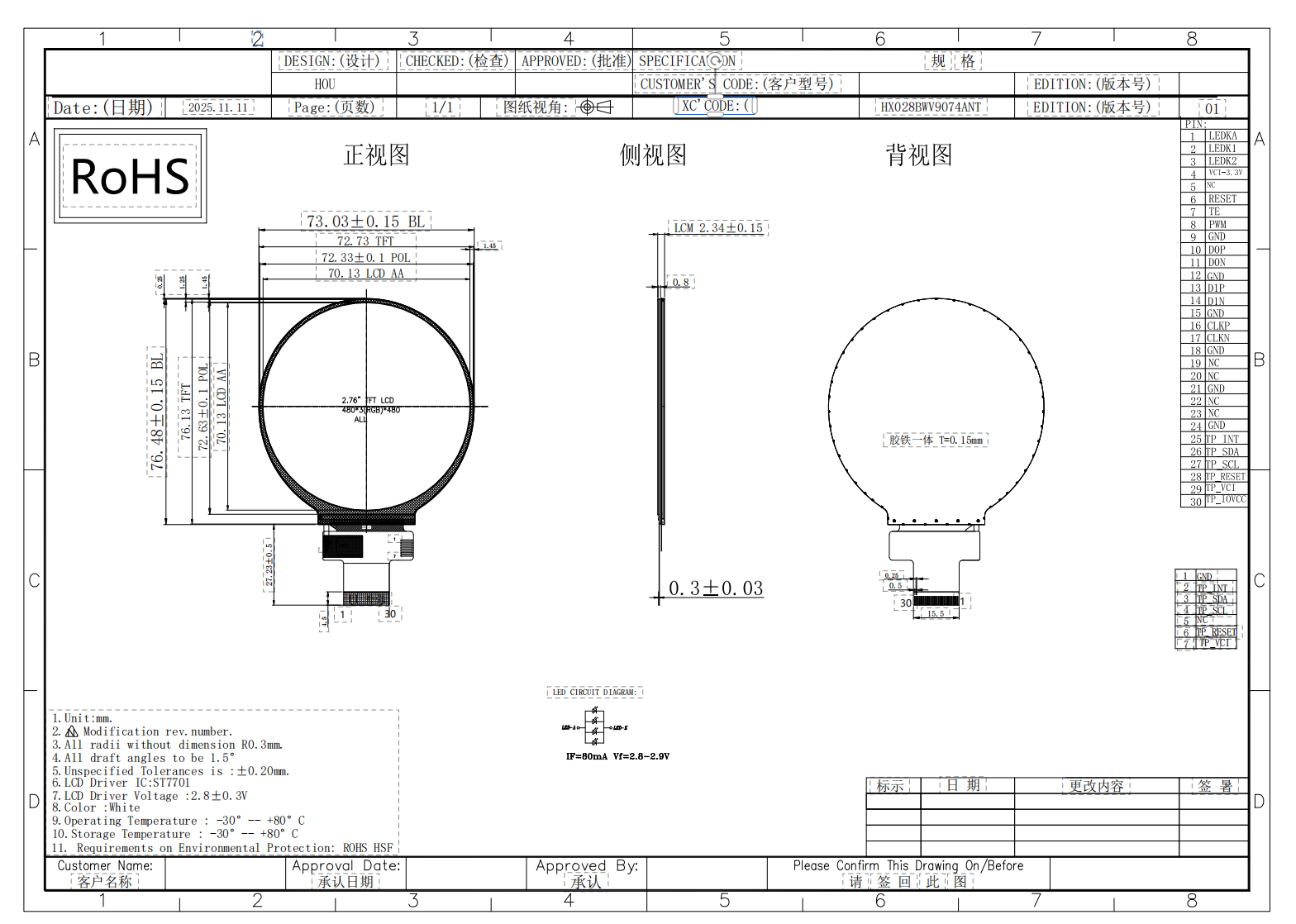

Outline dimensions: 85(H)*85(V)*3.72(D)
Active area: 70.13x70.13
Supply voltage: 3.3V
Light source: 3 White LED
Mounting type: PCB
Panel brand: BOE
Origin: Guangdong, China
Supply type: OEM / ODM
Brand: huaxin
Screen dimensions: 85(H)*85(V)*3.72(D)
Backlight: 3 White LED
Luminance: 300
Controller / Driver: CST836U
MOQ: 100PCS
Lead time: 7~15Working days
Applications: Smart home control panels Wearable electronic devices Industrial control equipment Medical equipment Automotive display systems Instrumentation Consumer electronic products HMI terminals Embedded control systems Interactive user-interface devices
