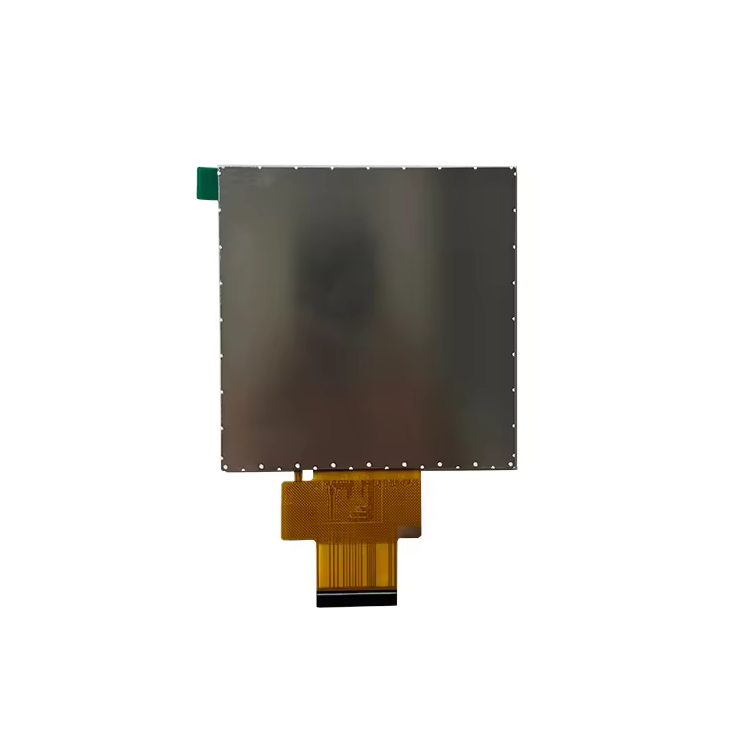

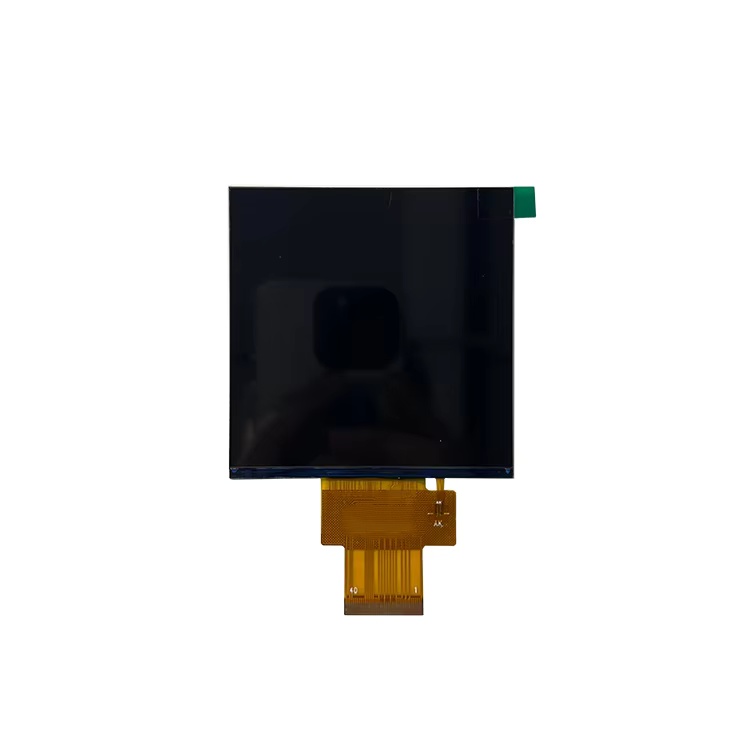

3.95" 480RGB*480 Square IPS TFT LCD Display

The HXT0397BVSA-02 is a 3.95-inch square IPS TFT LCD display module featuring a 720 × 720 resolution, ST7701 driver IC, and MIPI or RGB interface options. Its square display format and IPS technology provide clear images, vivid colors, and wide viewing angles for modern embedded display applications. The module has compact outline dimensions of 74.66 × 76.54 × 2.13 mm and supports an operating temperature range of -20°C to +70°C. Its high pixel density and balanced square display area make it suitable for graphical user interfaces, status displays, and interactive control systems. Typical applications include smart home control panels, IoT terminals, industrial HMI equipment, intelligent appliances, medical devices, and embedded electronic systems. HuaXin provides OEM and ODM services, including FPC, interface, backlight, touch panel, cover lens, and structural customization.

Display size: 3.95 inch
Resolution: 720 × 720
Interface: MIPI
Brightness: 500 cd/m²

Request a quote Back to products View datasheet

Product overview

The HXT0397BVSA-02 is a 3.95-inch square IPS TFT LCD module with a 720×720 resolution, ST7701 driver IC, MIPI or RGB interface options, wide viewing angles, and compact dimensions of 74.66 × 76.54 × 2.13 mm. Designed to operate from -20°C to +70°C, it is suitable for smart home control panels, IoT terminals, industrial HMI equipment, intelligent appliances, medical devices, and embedded systems. HuaXin provides OEM and ODM customization for the FPC, interface, backlight, touch panel, cover lens, and module structure.

Technical highlights

The HXT0397BVSA-02 combines a 720 × 720 resolution with a compact 3.95-inch square display format, providing high pixel density for detailed graphical content and modern user interfaces. IPS technology supports vivid colors and wide viewing angles, while the ST7701 driver IC and MIPI or RGB interface options provide flexible integration with compatible embedded platforms. Its slim 74.66 × 76.54 × 2.13 mm structure and -20°C to +70°C operating temperature range make it suitable for industrial, medical, IoT, smart home, and embedded applications.

Customization options

Custom FPC layout, length, shape, and pin definition Customized MIPI or RGB interface configuration Backlight brightness and power-consumption adjustment Optional touch panel integration Customized cover lens size, shape, color, and printing Optical bonding and air bonding support Customized module dimensions and mechanical structure Display assembly and system integration support Prototype development and mass-production services

HXD LCD

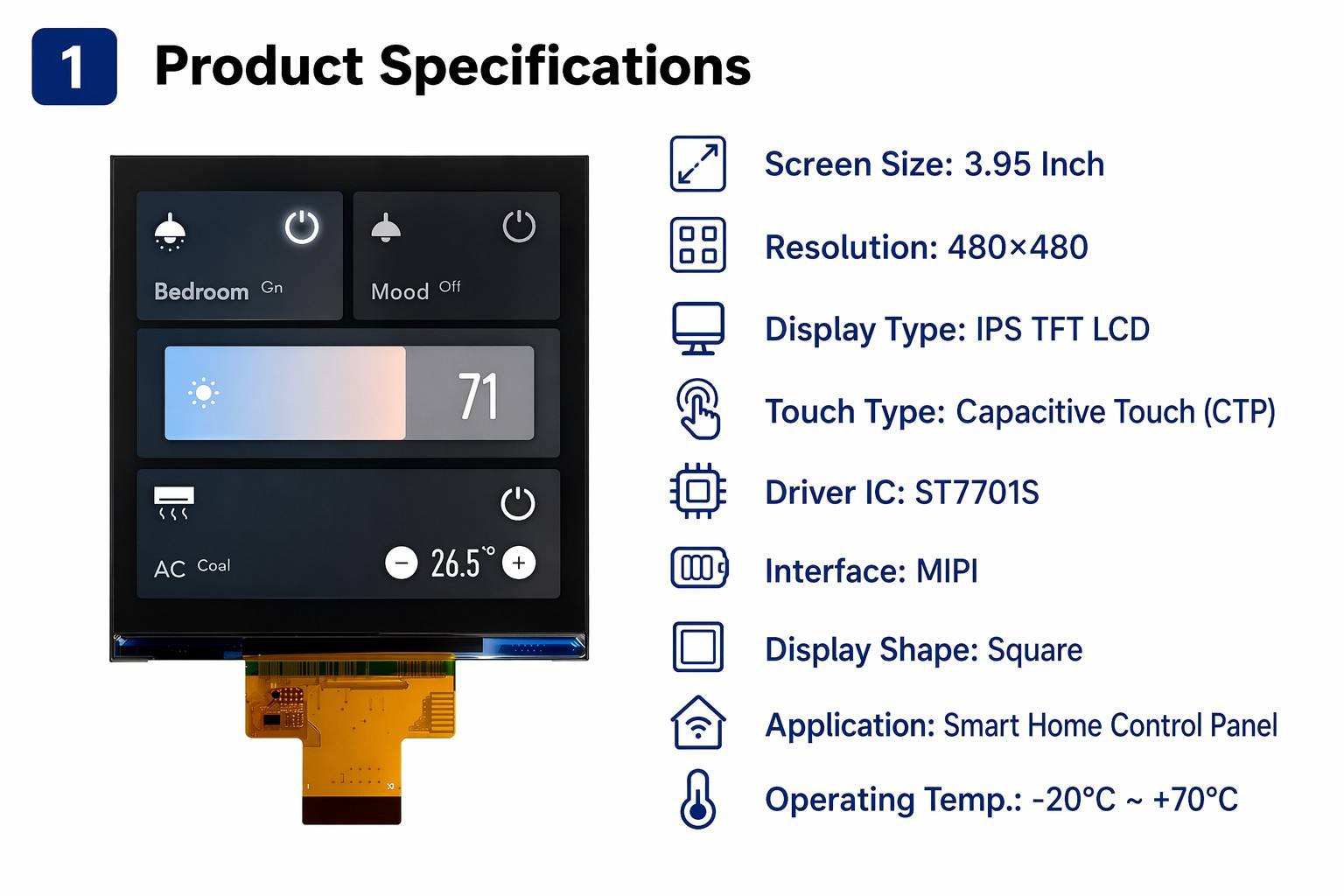

Technical specifications

Model number: HX395SQ0006B-A RGB
Category: TFT LCD
Display size: 3.95 inch
Resolution: 720 × 720
Interface: MIPI
Brightness: 500 cd/m²
Operating temperature: -20°C to +70°C
Display type: IPS
Viewing angle: ALL
Driver IC: ST7701SN
Touch panel: CTP

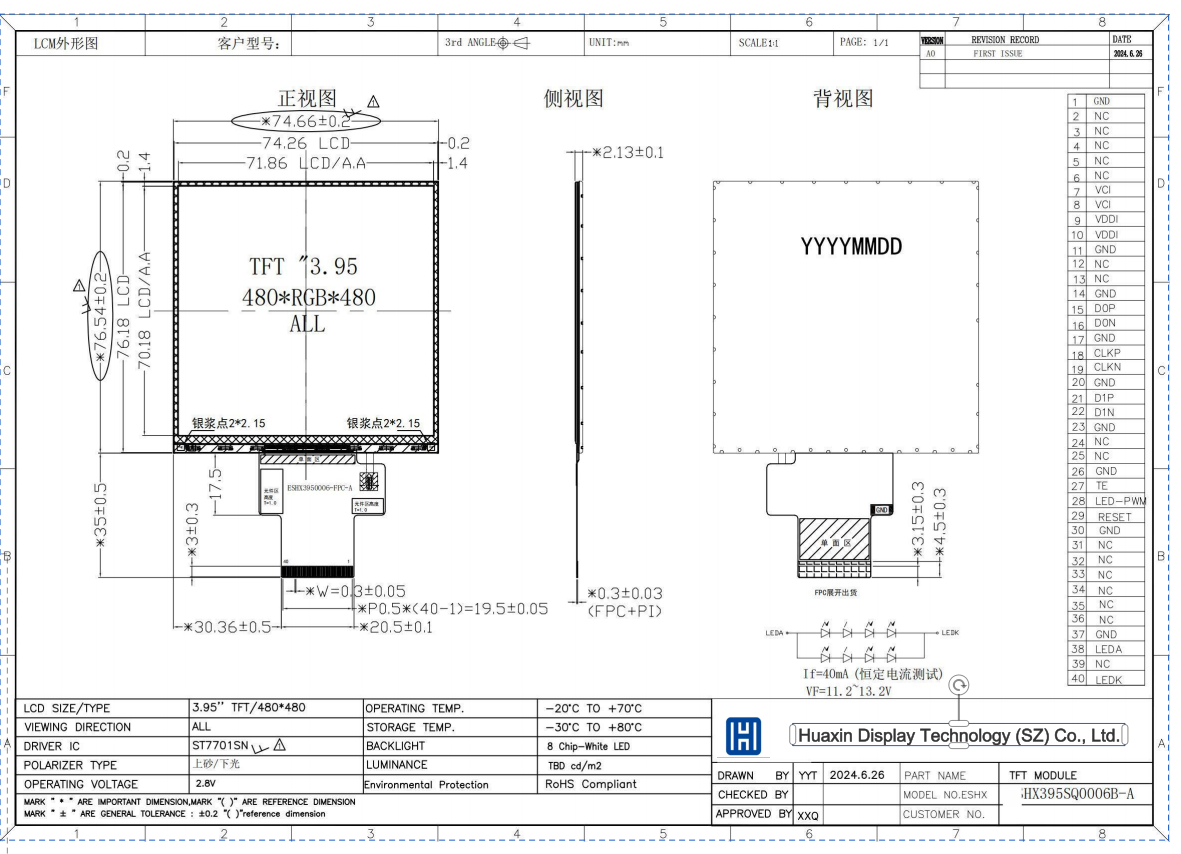

Outline dimensions: 74.66x76.54x 2.13
Active area: 71.86x70.18
Supply voltage: 2.8V
Light source: 8 LED
Mounting type: FPC
Panel brand: BOE
Origin: Guangdong china
Supply type: OEM/ODM
Brand: Huangxing
Display mode: 3.95 inch
Backlight: 8 LED
Luminance: 400nit
MOQ: 100pcs
Lead time: 15 days
Applications: Smart home control panels IoT terminals Industrial HMI equipment Intelligent appliances Medical devices Embedded electronic systems Graphical user-interface terminals Status display panels Interactive control systems Customized smart hardware
