Product overview
HXD-LCD H0175Y003AMT003 V0 is a AMOLED module for OEM and ODM display integration. Verified specifications should be taken from the published datasheet.
5 product images · Select a thumbnail to enlarge
AMOLEDH0175Y003AMT003 V0
AMOLED LCD Module: 1.75”466RGB*466Dot MIPI OR QSPI 圆屏
1.75inch466x466isacoloractivematrixAMOLEDmodule Thismodulehasa1.75inchdiagonallymeasuredactive areawith466x466 resolutions (466horizontal by466vertical pixel arrays). Eachpixel is dividedintoRED, GREEN,BLUEdotsandthismodulecandisplay16.7Mcolors.
- Display size
- 1.75 inch
- Resolution
- 466RGB x 466
- Interface
- MIPI
- Brightness
- 700 cd/m²
Technical highlights
466RGB x 466 resolution, MIPI interface, -20°C to +70°C operating temperature
Customization options
Available customization includes interface and FPC design, cover glass, capacitive or resistive touch, backlight brightness, optical bonding, mechanical dimensions and operating-temperature options. Final availability must be confirmed by engineering review.
HXD LCD
Technical specifications
- Model number
- H0175Y003AMT003 V0
- Category
- AMOLED
- Display size
- 1.75 inch
- Resolution
- 466RGB x 466
- Interface
- MIPI
- Brightness
- 700 cd/m²
- Operating temperature
- -20°C to +70°C
- Display type
- AMOLED
- Viewing angle
- ALL
- Driver IC
- CO5300
- Touch panel
- CTP

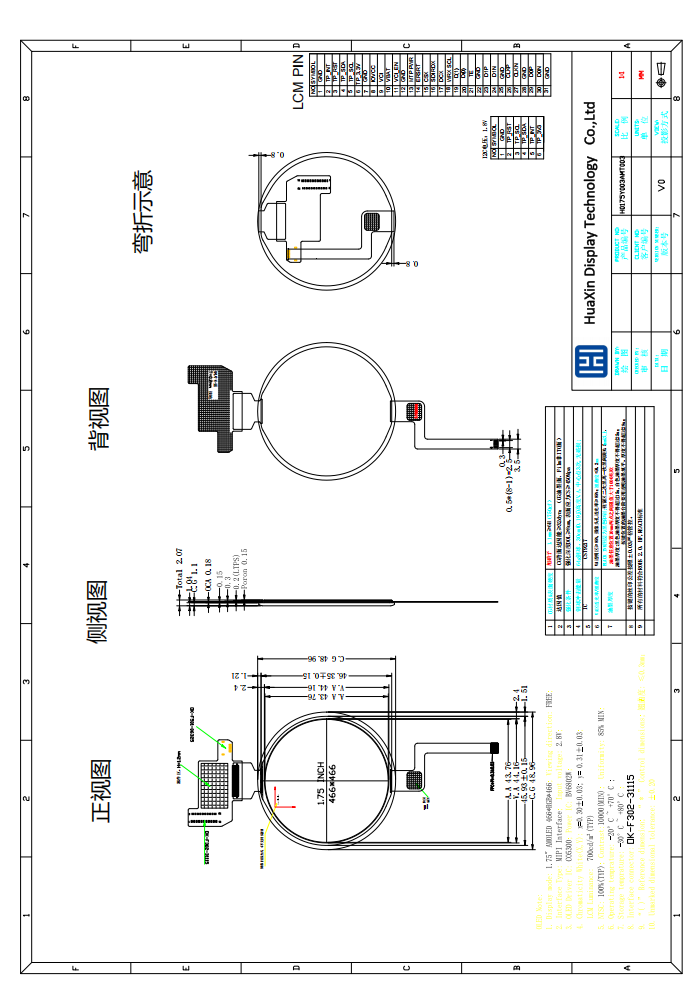

- Outline dimensions
- 45.93(H) ×46.35(V)×0.8(T)
- Active area
- Φ43.76
- Supply voltage
- 3.3v
- Mounting type
- FPC
- Panel brand
- Visionox
- Origin
- Guangdong, China
- Supply type
- OEM / ODM
- Brand
- HXD LCD
- Controller / Driver
- CST9217
- MOQ
- 100pcs
- Lead time
- 15 days
Gallery
Product images
All product images uploaded through the admin.
Frequently asked questions
Can the H0175Y003AMT003 V0 be customized?
Yes. HXD-LCD can evaluate interface, FPC, touch panel, cover glass, backlight and mechanical customization based on project requirements.
Is a datasheet available for the H0175Y003AMT003 V0?
The latest available datasheet can be downloaded from this product page or requested from the HXD-LCD sales team.
Does HXD-LCD support samples and mass production?
Yes. Sample evaluation and volume-production support are available, subject to model availability and project review.
