Product overview
HXD-LCD HX0143Y002M V1 is a AMOLED module for OEM and ODM display integration. Verified specifications should be taken from the published datasheet.
5 product images · Select a thumbnail to enlarge
AMOLEDHX0143Y002M V1
AMOLED LCD Module: 1.43”466RGB*466Dot MIPI Round screen
1.43 inch 466x466 is a color active matrix AMOLED module using Low Temperature Poly-silicon TFT’s (Thin Film Transistors) as active switching devices. This module has a 1.43 inch diagonally measured active area with 466x466 resolutions (466 horizontal by 466 vertical pixel arrays). Each pixel is divided into RED, GREEN, BLUE dots and this module can display 16.7M colors.
- Display size
- 1.43 inch
- Resolution
- 466RGB x 466
- Interface
- MIPI
- Brightness
- 450 cd/m²
Technical highlights
466RGB x 466 resolution, MIPI interface, -20°C to +70°C operating temperature
Customization options
Available customization includes interface and FPC design, cover glass, capacitive or resistive touch, backlight brightness, optical bonding, mechanical dimensions and operating-temperature options. Final availability must be confirmed by engineering review.
HXD LCD
Technical specifications
- Model number
- HX0143Y002M V1
- Category
- AMOLED
- Display size
- 1.43 inch
- Resolution
- 466RGB x 466
- Interface
- MIPI
- Brightness
- 450 cd/m²
- Operating temperature
- -20°C to +70°C
- Display type
- AMOLED
- Viewing angle
- ALL
- Driver IC
- C05300
- Touch panel
- CTP

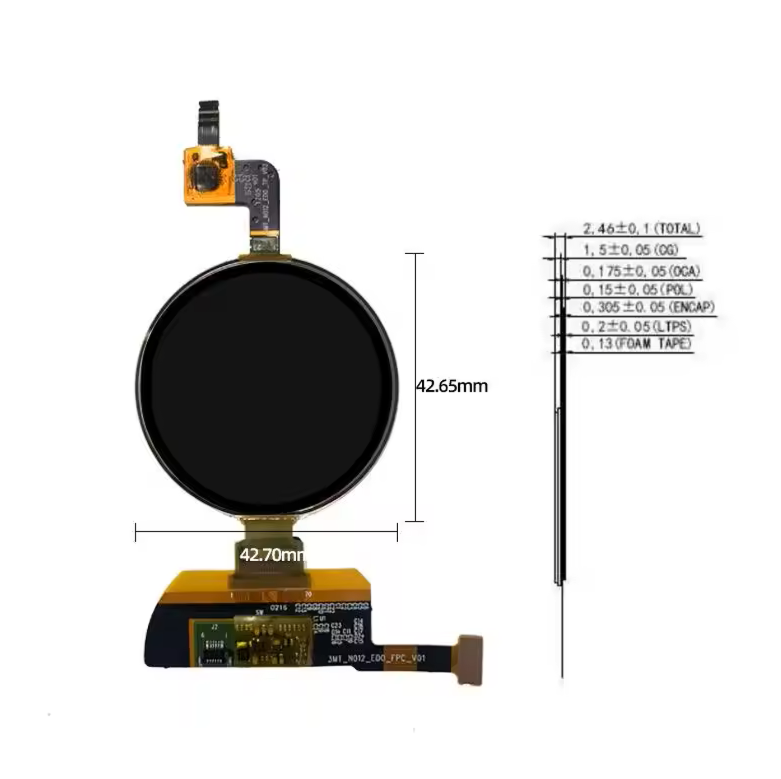

- Outline dimensions
- 39.15(H) ×39.23(V)×0.52(T)
- Active area
- Φ36.35
- Supply voltage
- 3.3v
- Mounting type
- FPC
- Panel brand
- Visionox
- Origin
- Guangdong, China
- Supply type
- OEM / ODM
- Brand
- HXD LCD
- Luminance
- 450cd/m²
- Controller / Driver
- BV6802
- MOQ
- 100PCS
- Lead time
- 15 Days

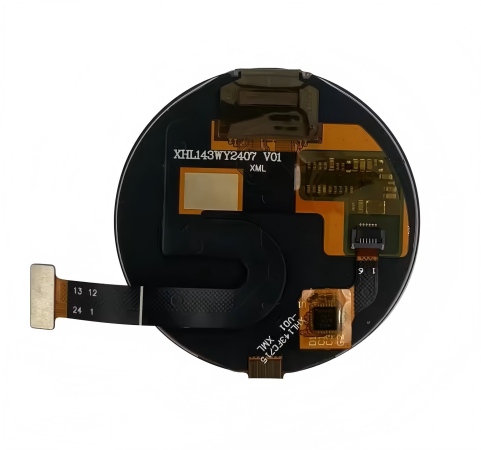

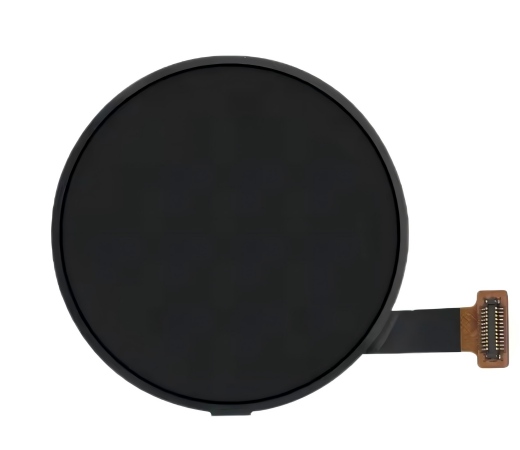

Gallery
Product images
All product images uploaded through the admin.
Frequently asked questions
Can the HX0143Y002M V1 be customized?
Yes. HXD-LCD can evaluate interface, FPC, touch panel, cover glass, backlight and mechanical customization based on project requirements.
Is a datasheet available for the HX0143Y002M V1?
The latest available datasheet can be downloaded from this product page or requested from the HXD-LCD sales team.
Does HXD-LCD support samples and mass production?
Yes. Sample evaluation and volume-production support are available, subject to model availability and project review.
