The HXD-10800AZ is a transmissive color active matrix TFT LCD display module featuring a resolution of 128 (RGB) × 220 pixels. It integrates the GC9203N driver IC and supports a 4-line SPI interface, enabling convenient integration with compact embedded control platforms.
With a typical luminance of 450 cd/m², the module provides clear and stable color display performance. Its compact outline dimensions of 16.12 × 29.76 × 1.52 mm make it suitable for electronic products with limited installation space. The display supports an operating temperature range of -20°C to +70°C.
Typical applications include smart wearables, portable electronic products, IoT devices, compact industrial equipment, status displays, and embedded control systems. HuaXin provides OEM and ODM services, including FPC, interface, backlight, touch panel, cover lens, and structural customization.
The HXD-10800AZ is a compact transmissive color TFT LCD module featuring a 128×220 resolution, 450 cd/m² typical luminance, GC9203N driver IC, and 4-line SPI interface. Its slim 16.12 × 29.76 × 1.52 mm structure and -20°C to +70°C operating temperature range make it suitable for smart wearables, portable electronics, IoT devices, embedded systems, and compact industrial equipment. HuaXin offers OEM and ODM customization for the FPC, interface, backlight, touch panel, cover lens, and module structure.
Technical highlights
The HXD-10800AZ combines a 128 (RGB) × 220 resolution with a compact 16.12 × 29.76 × 1.52 mm module structure for space-constrained product designs. Its 450 cd/m² typical luminance supports clear color content, while the integrated GC9203N driver IC and 4-line SPI interface simplify connection with compatible embedded controllers. The -20°C to +70°C operating temperature range supports wearable, portable, IoT, and compact industrial applications.
Customization options
Custom FPC layout, length, shape, and pin definition
Customized 4-line SPI interface configuration
Backlight brightness and power-consumption adjustment
Optional touch panel integration
Customized cover lens size, shape, color, and printing
Optical bonding and air bonding support
Customized module dimensions and mechanical structure
Display assembly and embedded integration support
Prototype development and mass-production services
HXD LCD
Technical specifications
Model number
HXD-10800AZ
Category
TFT LCD
Display size
1.08 inch
Resolution
128(H)RGB x 220(V)
Interface
SPI
Brightness
450 cd/m²
Operating temperature
-20°C to +70°C
Display type
IPS
Viewing angle
ALL
Driver IC
GC9203N

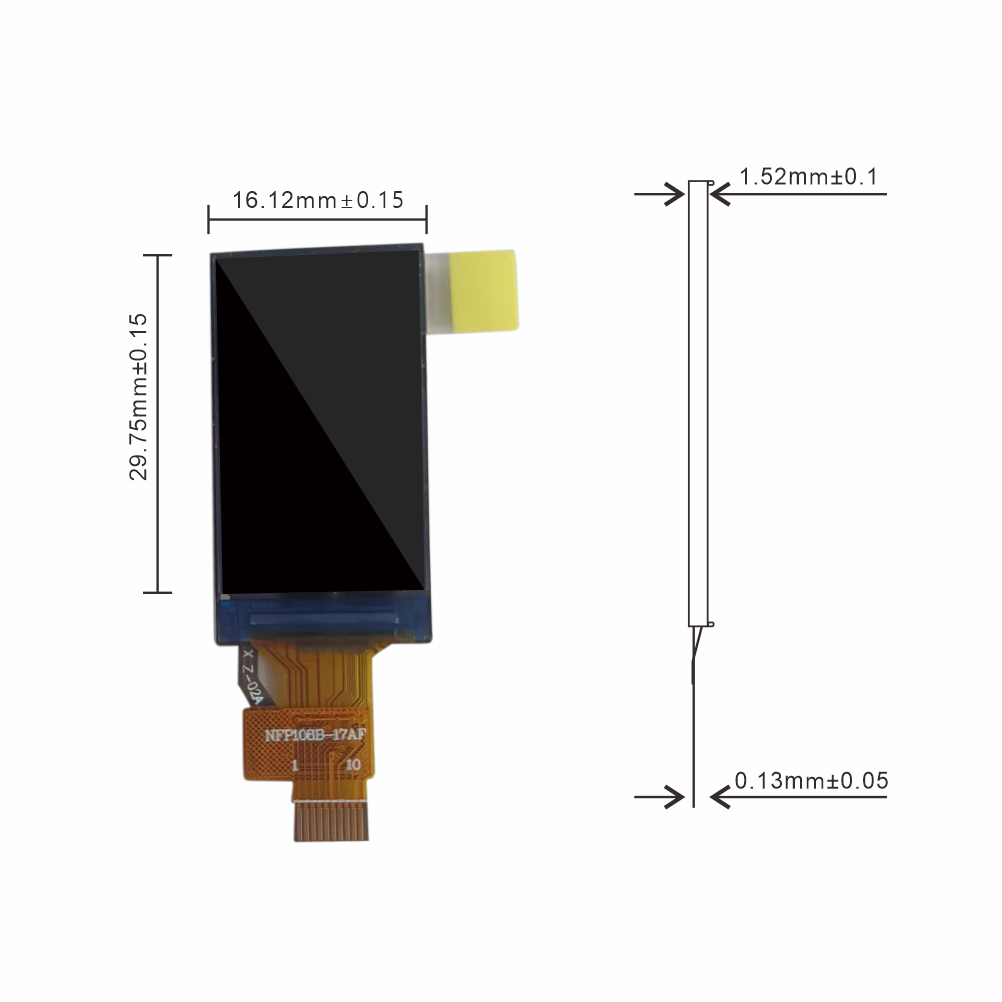

Outline dimensions
16.12(H) x 29.76(V) x1.52(D) mm
Active area
13.824(H) x 23.76(V) mm
Supply voltage
3.3V
Light source
1 White LED
Mounting type
PCB
Panel brand
BOE
Origin
Guangdong, China
Supply type
OEM / ODM
Brand
huaxin
MOQ
100pcs
Lead time
7-15 working day
Applications
Smart wearable devices
Portable electronic products
IoT devices
Compact industrial equipment
Embedded control systems
Status display terminals
Health monitoring devices
Handheld instruments
Personal electronic devices
Customized smart hardware
Gallery

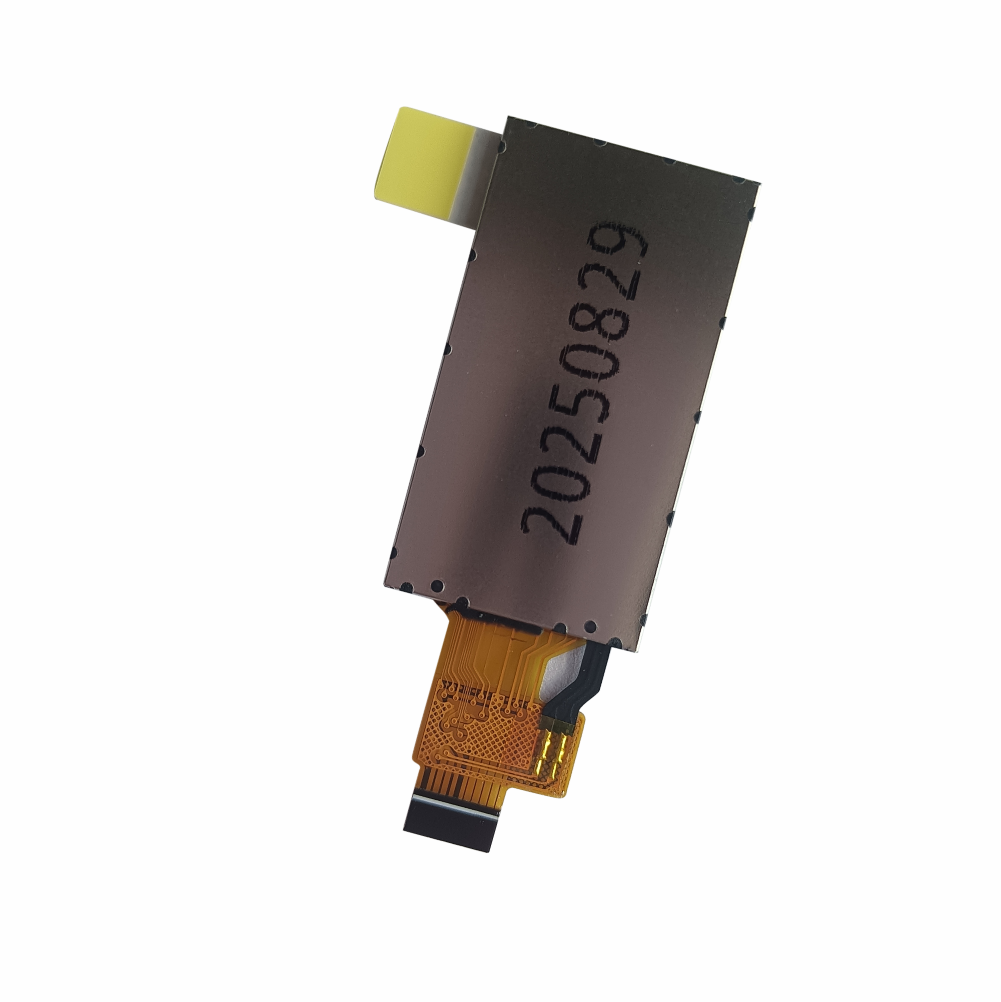

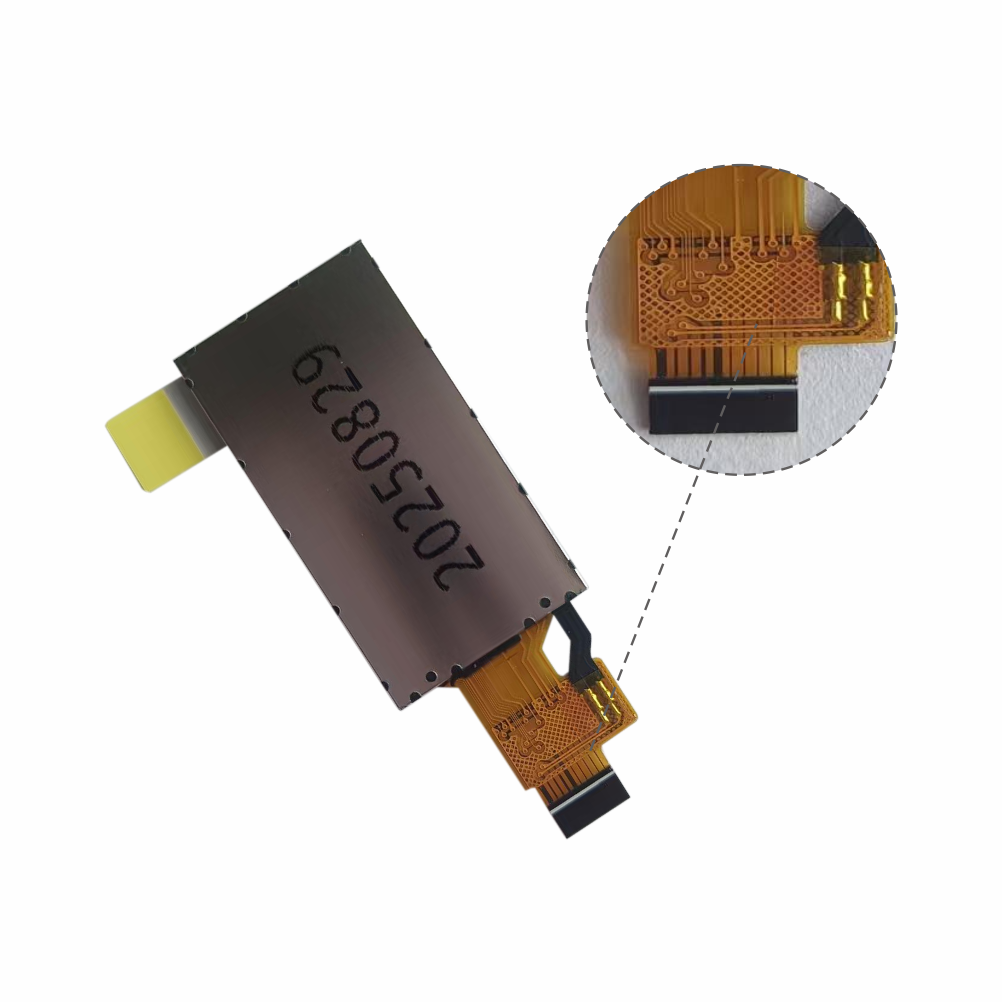

Product images
All product images uploaded through the admin.
Frequently asked questions
Can the HXD-10800AZ be customized?
Yes. HXD-LCD can evaluate interface, FPC, touch panel, cover glass, backlight and mechanical customization based on project requirements.
Is a datasheet available for the HXD-10800AZ?
The latest available datasheet can be downloaded from this product page or requested from the HXD-LCD sales team.
Does HXD-LCD support samples and mass production?
Yes. Sample evaluation and volume-production support are available, subject to model availability and project review.
