AMOLEDORC-Z017818C-V01

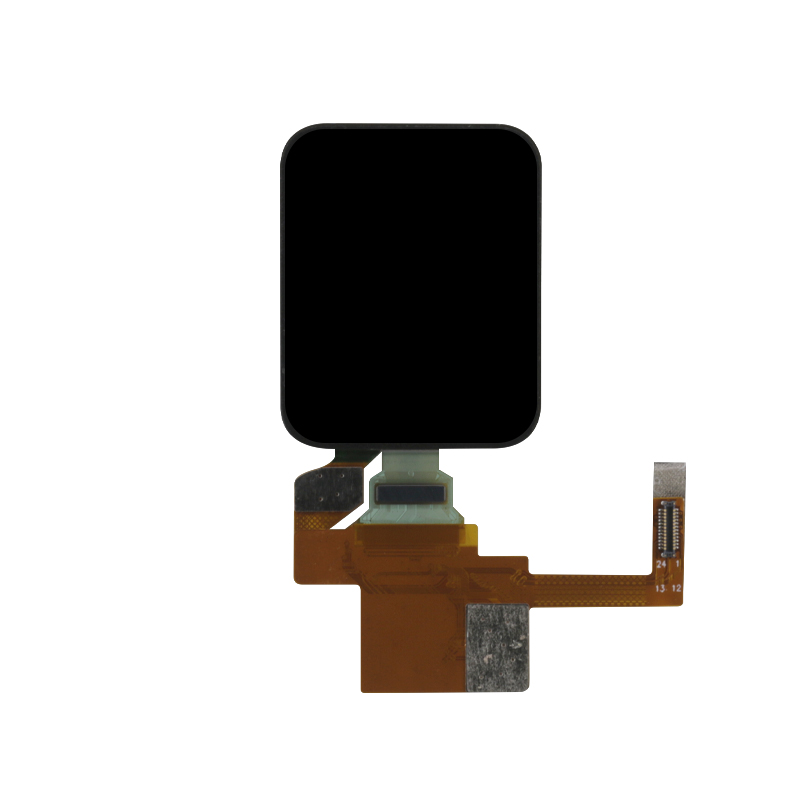

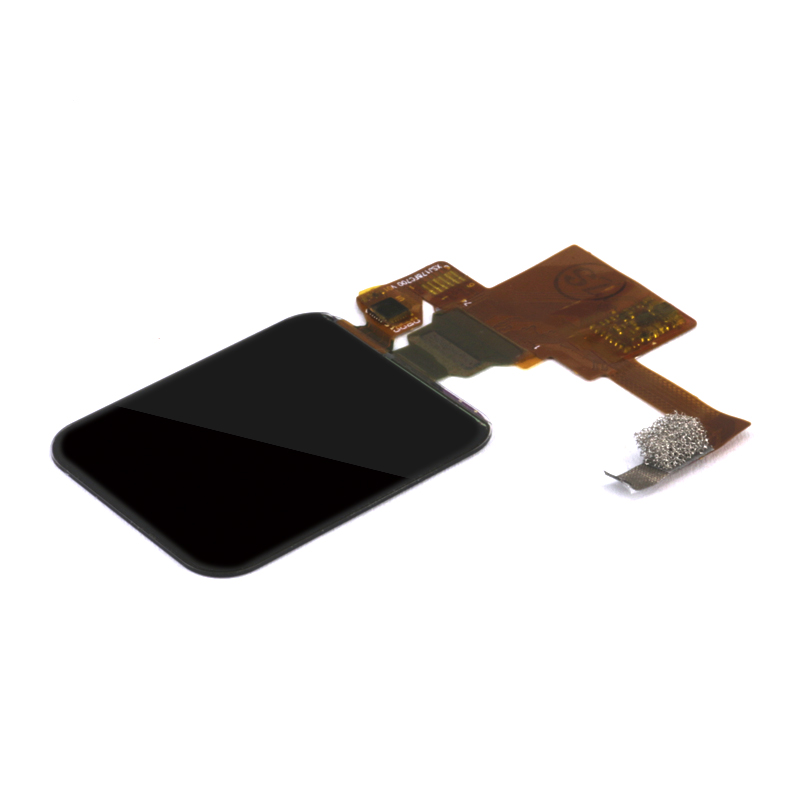

1.78-inch AMOLED LCD display screen
Z017818C-V01 matri is is a color active AMOLED module using Low Temperature Poly-silicon AMOLEDās (Thin FilmTransistors) as active switching devices. This module has a 1.78 inch diagonally measuredactiveareawith368RGBx448resolutions(368horizontalby 448verticalpixe arrays).EachpixelisdividedintoRED,GREEN,BLUEdots.
- Display size
- 1.78 inch
- Resolution
- 368(R.G.B)*448

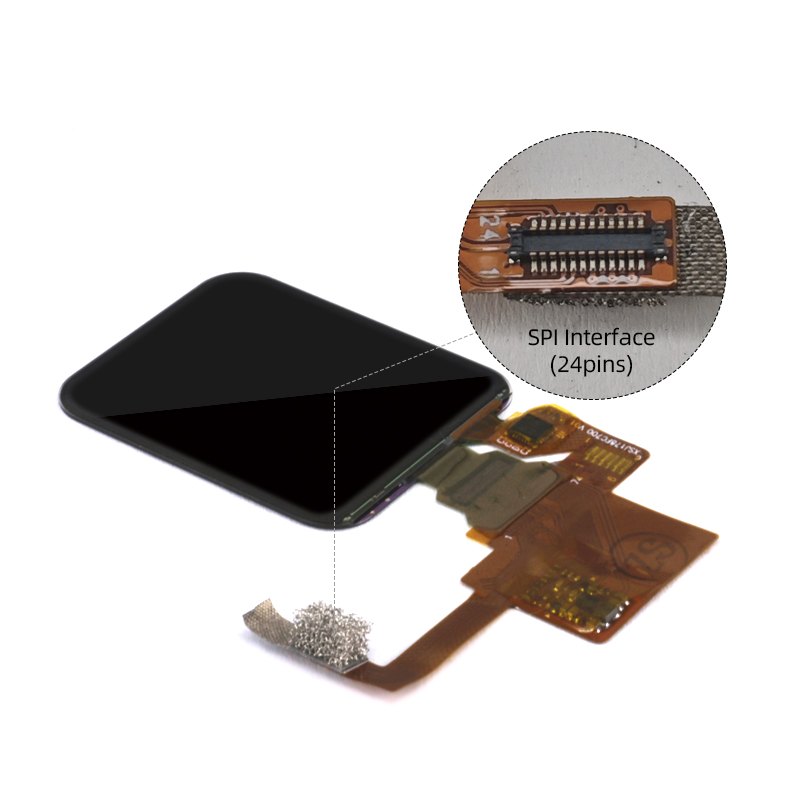

- Interface
- SPI
- Brightness
- 500 cd/mĀ²
HXD LCD
Technical specifications
- Model number
- ORC-Z017818C-V01
- Category
- AMOLED
- Display size
- 1.78 inch
- Resolution
- 368(R.G.B)*448
- Interface
- SPI
- Brightness
- 500 cd/mĀ²
- Operating temperature
- -20Ā°C to +70Ā°C
- Display type
- AMOLED
- Viewing angle
- AII
- Driver IC
- CO5300AF-05
- Touch panel
- CTP
- Outline dimensions
- 33.8*40.9*2.43
- Active area
- 28.70*34.95
- Supply voltage
- 3.3V
- Light source
- self-luminous
- Mounting type
- FPC
- Panel brand
- Visionox
- Origin
- Guangdong, China
- Supply type
- OEM / ODM
- Brand
- HXD LCD
- Screen dimensions
- 33.8*40.9*2.43
- Display mode
- 1.78 inch AMOLED
- Luminance
- 500
- Controller / Driver
- FT6146-M00
- MOQ
- 10
- Lead time
- 15 days
