Low Power 0.96 Inch OLED Display Module 128*64 Dot Matrix Display

Low Power 0.96 Inch OLED Display Module 128*64 Dot Matrix Display

Products - OLED Display Module
  • High Light

    oled display module 128*64

    ,

    128*64 0.96 inch oled display

    ,

    low power oled display module

  • Size
    0.96 Inch
  • Resolution
    128 * 64 Dot Matrix
  • Viewing Direction
    All
  • OLED Mode
    OLED, Transmissive
  • IC
    SSD1306BZ
  • High Light
    High Resolution Oled Display, Oled Character Display
  • Place of Origin
    shenzhen china
  • Brand Name
    HUAXING
  • Certification
    REACH ROHS ISO9001
  • Model Number
    HX21009HXFA
  • Minimum Order Quantity
    MOQ:1000
  • Price
    Negotiation
  • Packaging Details
    Bubble bag + Blister + Foam box + Carton
  • Delivery Time
    5 ~ 7Working Days
  • Payment Terms
    T/T,Western Union, Paypal
  • Supply Ability
    200K Sets / Month

Low Power 0.96 Inch OLED Display Module 128*64 Dot Matrix Display

  • Low Power 0.96 Inch OLED Display Module 128*64 Dot Matrix Display
  • Low Power 0.96 Inch OLED Display Module 128*64 Dot Matrix Display
  • Low Power 0.96 Inch OLED Display Module 128*64 Dot Matrix Display
Get Price Contact Now

Product Description



OLED Display Module 0.96 Inch Oled 12864 Dot Matrix Display Low Power Oled Screen White /blue Color Oled Display


A. Specifications:

ITEM
CONTENT
DESCRIPTION
1
Display outline size
26.70 ( H ) * 14.4 ( W ) * 1.45 mm ( T )
2
 VA size
23.74 * ( H ) * 11.18 ( W ) mm
3
Resolution
128 x 64 Dot Matrix
4
Pin Number
15pins
5
Interface
 Parallel / Serial / IIC
6
Diagonal Size
0.96Inch
7
Color
 White/Bule
8
Drive IC
SSD1306BZ


0.96 inch white light 30pin welded horizontal screen, resolution: 128 * 64, Thickness 1.45mm, drive Ic:ssd1306, line length 12mm, Long-term stock.



B. Product Details:

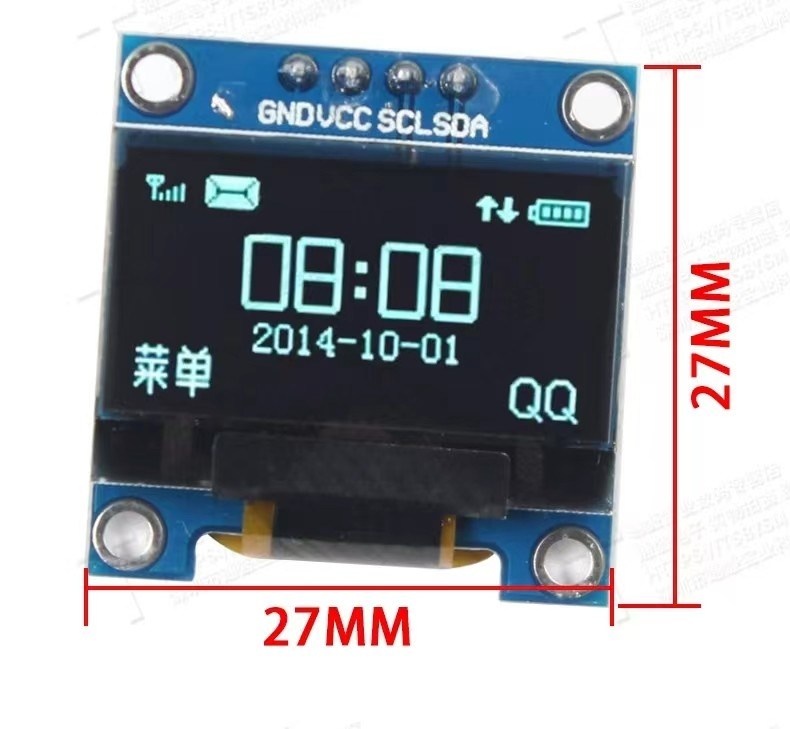

Low Power 0.96 Inch OLED Display Module 128*64 Dot Matrix Display 0














C. Structure Diagram:



OLED also has a wide color gamut, high contrast, extremely high reaction speed, bendable, power saving and other characteristics, OLED screen in the display of black can do not shine at all.


0.96 Inch OLED Display Module 12864 Dot Matrix Display Low Power White Color 2

Application:

Wearables

eBooks

Smart cards

Electronic labels

Status displays

Low Power 0.96 Inch OLED Display Module 128*64 Dot Matrix Display 2
