AMOLEDH0216F003AMT003V4
2.16”inch AMOLED 480RGB*480DotMIPI
2.16inch480x480isacoloractivematrixAMOLEDmoduleThismodulehasa2.16inchdiagonallymeasuredactive areawith480x480 resolutions (480horizontal by480vertical pixel arrays). Eachpixel is dividedintoRED,GREEN,BLUEdotsandthismodulecandisplay16.7Mcolors.
- Display size
- 2.16 inch
- Resolution
- 480RGBx480
- Interface
- MIPI
- Brightness
- 700 cd/m²
HXD LCD
Technical specifications
- Model number
- H0216F003AMT003V4
- Category
- AMOLED
- Display size
- 2.16 inch
- Resolution
- 480RGBx480
- Interface
- MIPI
- Brightness
- 700 cd/m²
- Operating temperature
- -20°C to +70°C
- Display type
- AMOLED
- Viewing angle
- ALL
- Driver IC
- CO5300

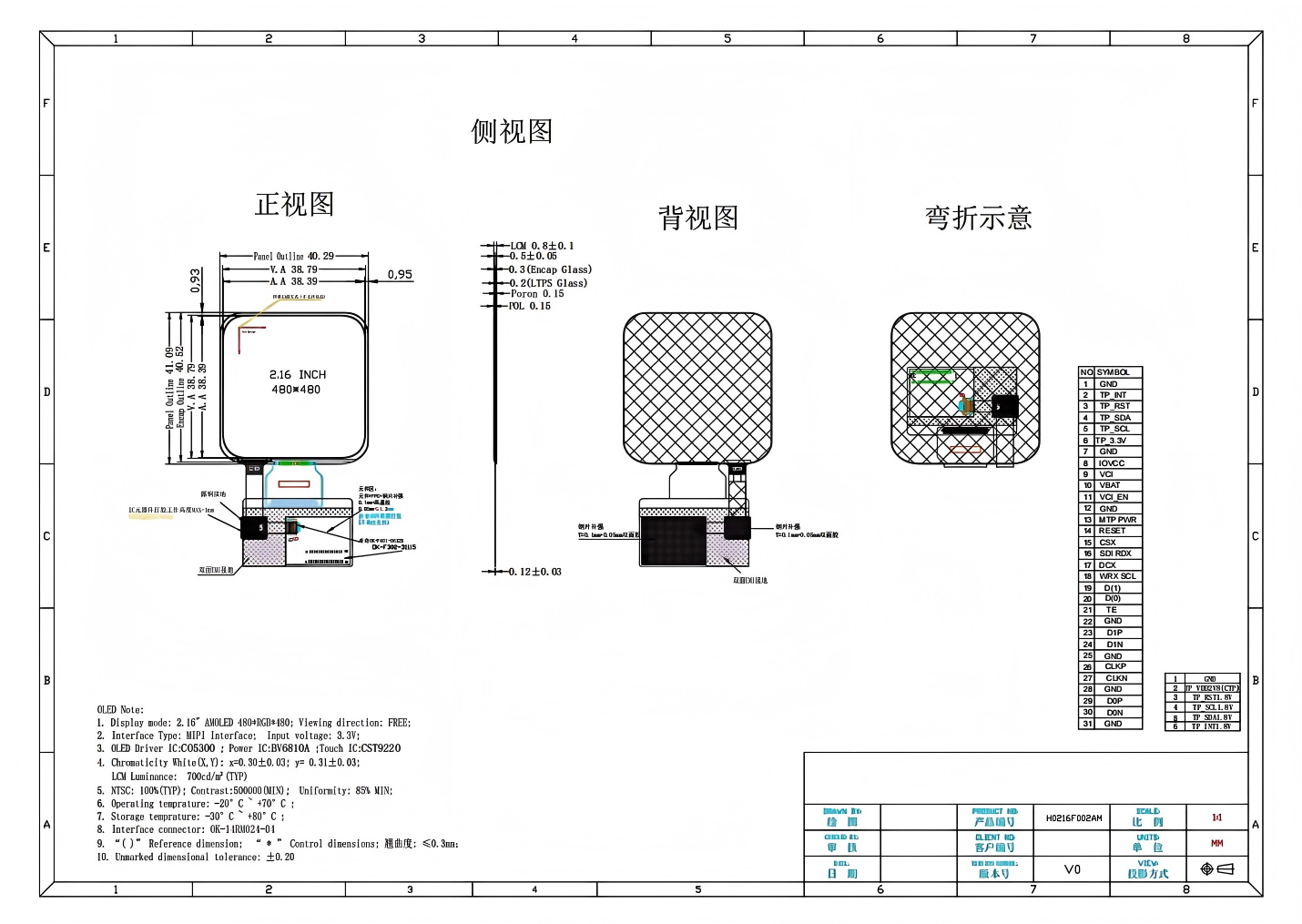

- Outline dimensions
- 40.29(H)×41.09(V)×0.8(T)
- Active area
- 38.39(H)×38.39(V)
- Supply voltage
- 3.3V
- Light source
- self-luminous
- Mounting type
- FPC
- Panel brand
- Visionox
- Origin
- Guangdong, China
- Supply type
- OEM / ODM
- Brand
- HXD LCD
- Screen dimensions
- 40.29(H)×41.09(V)×0.8(T)
- Display mode
- 2.16 inch
- Luminance
- 700cd/m2
- Controller / Driver
- CST9220
- MOQ
- 10
- Lead time
- 15 Days
