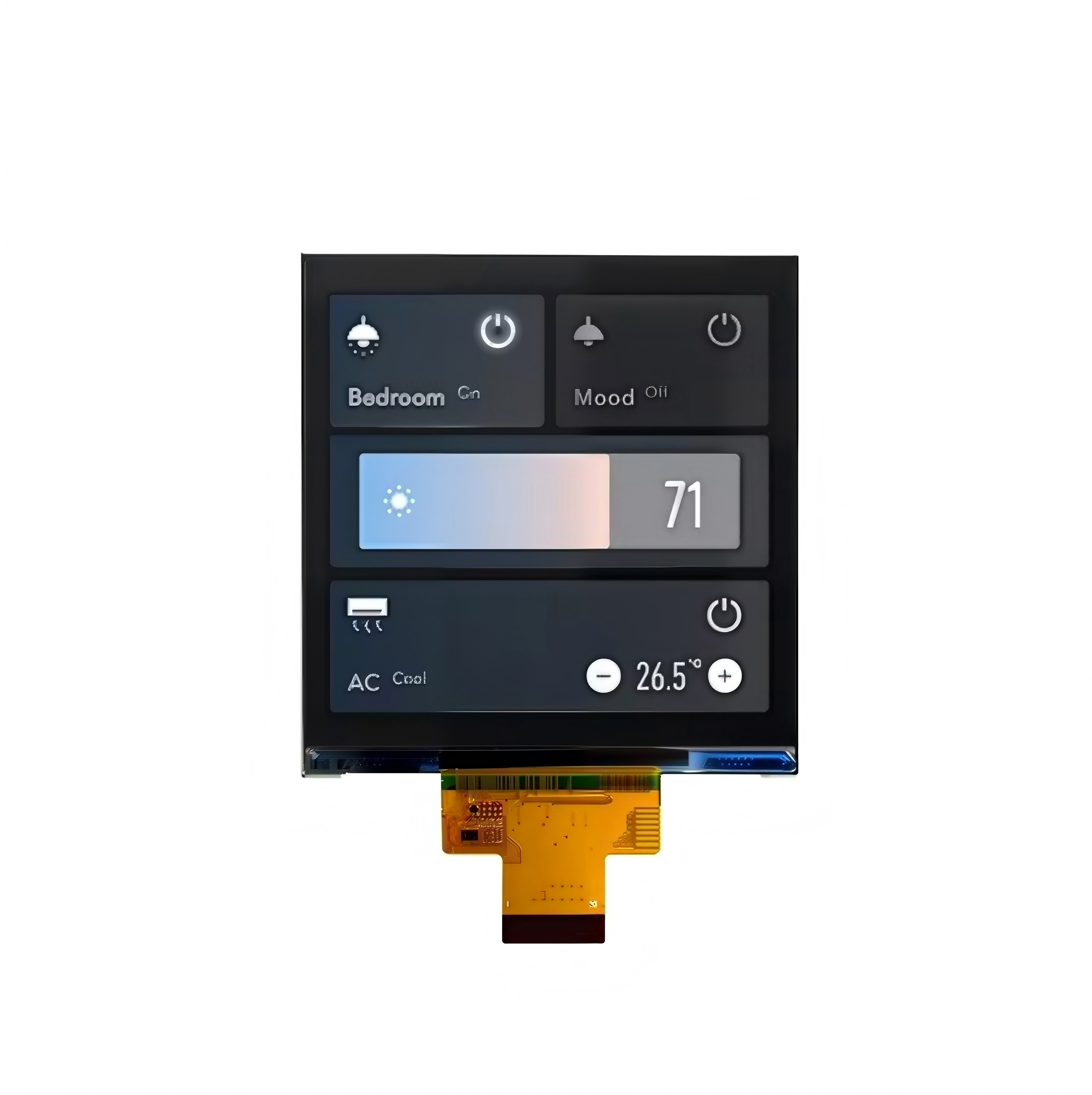

The HXT0397BVSA-02 is a 3.95-inch square IPS TFT LCD display module featuring a high-resolution 720 × 720 pixel display and a MIPI interface. Its square display format and IPS technology provide clear images, vivid colors, and wide viewing angles for modern embedded applications. The module has compact outline dimensions of 74.66 × 76.54 × 2.13 mm and supports an operating temperature range of -20°C to +70°C. Its high pixel density and balanced square format make it suitable for graphical user interfaces, status displays, and interactive control systems. Typical applications include smart home control panels, IoT terminals, intelligent appliances, industrial HMI equipment, medical devices, and embedded electronic systems. HuaXin provides OEM and ODM services, including FPC, interface, backlight, touch panel, and structural customization.
Product overview
The HXT0397BVSA-02 is a 3.95-inch square IPS TFT LCD module with a 720×720 high-resolution display, MIPI interface, wide viewing angles, and compact dimensions of 74.66 × 76.54 × 2.13 mm. Designed to operate from -20°C to +70°C, it is suitable for smart home control panels, IoT terminals, industrial HMI equipment, medical devices, and embedded systems. HuaXin provides OEM and ODM customization for the FPC, interface, backlight, touch panel, cover lens, and module structure.
The HXT0397BVSA-02 combines a 720 × 720 high-resolution panel with a compact 3.95-inch square display format, providing high pixel density for detailed graphical content and modern user interfaces. IPS technology supports vivid colors and wide viewing angles, while the MIPI interface enables integration with compatible embedded platforms. Its slim 74.66 × 76.54 × 2.13 mm structure and -20°C to +70°C operating temperature range make it suitable for space-constrained industrial, medical, IoT, and smart home applications.
Custom FPC layout, length, shape, and pin definition Customized MIPI interface configuration Backlight brightness and power-consumption adjustment Optional touch panel integration Customized cover lens size, shape, color, and printing Optical bonding and air bonding support Customized module dimensions and mechanical structure Display assembly and system integration support Prototype development and mass-production services
HXD LCD
Gallery
All product images uploaded through the admin.
Yes. HXD-LCD can evaluate interface, FPC, touch panel, cover glass, backlight and mechanical customization based on project requirements.
The latest available datasheet can be downloaded from this product page or requested from the HXD-LCD sales team.
Yes. Sample evaluation and volume-production support are available, subject to model availability and project review.
