Product overview
HXD-LCD 5.44”FHDAMOLED is a AMOLED module for OEM and ODM display integration. Verified specifications should be taken from the published datasheet.
6 product images · Select a thumbnail to enlarge
AMOLED5.44”FHDAMOLED

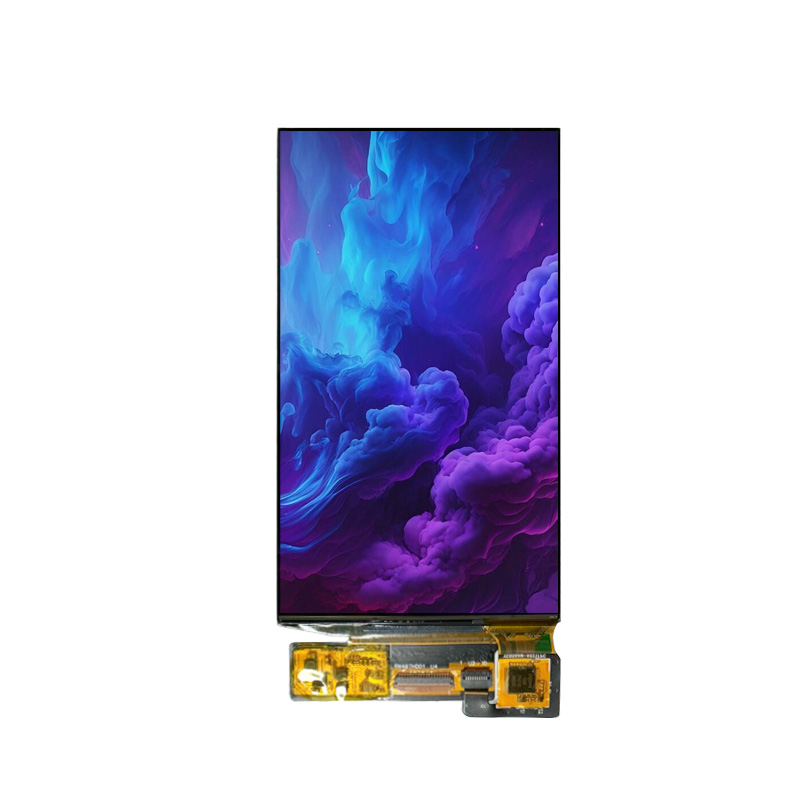

5.44-inch resolution 1080RGBx1920 AMOLED LCD display screen
111
- Display size
- 5.44 inch
- Resolution
- 1080RGBx1920
- Interface
- MIPI
- Brightness
- 350 cd/m²
Technical highlights
1080RGBx1920 resolution, MIPI interface, -20°C to +70°C operating temperature
Customization options
Available customization includes interface and FPC design, cover glass, capacitive or resistive touch, backlight brightness, optical bonding, mechanical dimensions and operating-temperature options. Final availability must be confirmed by engineering review.
HXD LCD
Technical specifications
- Model number
- 5.44”FHDAMOLED
- Category
- AMOLED
- Display size
- 5.44 inch
- Resolution
- 1080RGBx1920
- Interface
- MIPI
- Brightness
- 350 cd/m²
- Operating temperature
- -20°C to +70°C
- Display type
- AMOLED
- Viewing angle
- all
- Driver IC
- RM67199
- Touch panel
- On-cell CTP

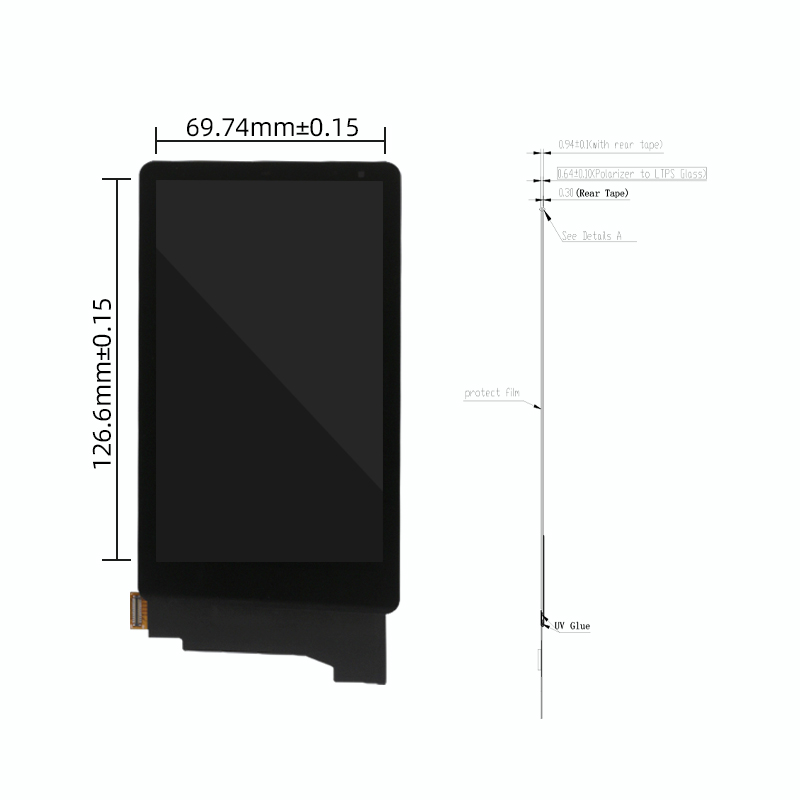

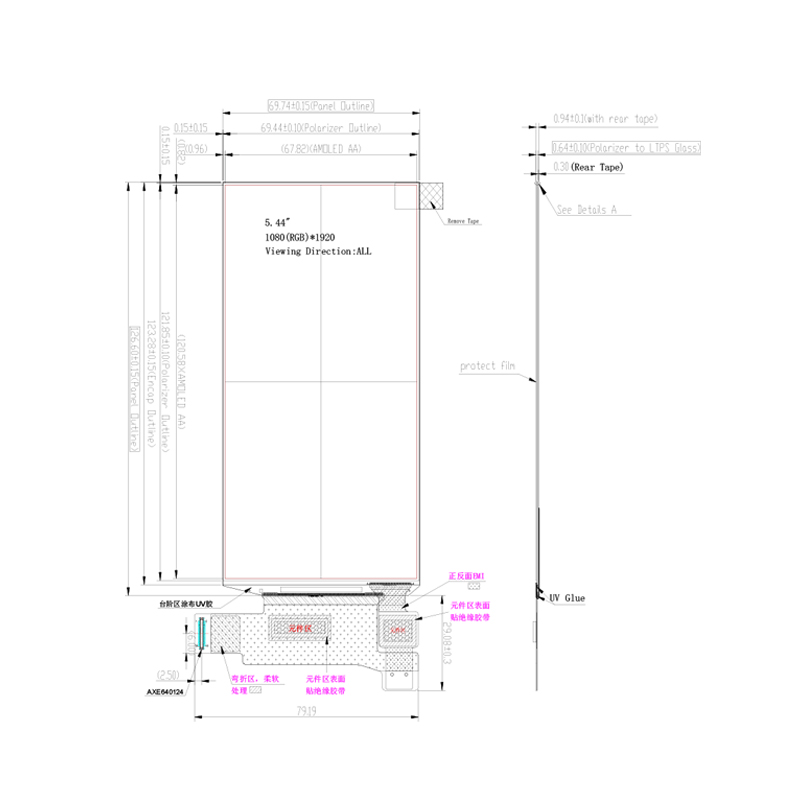

- Outline dimensions
- 69.74*126.60*0.84
- Active area
- 67.82x120.58
- Supply voltage
- 3.3v
- Light source
- self-luminous
- Mounting type
- FPC
- Panel brand
- Visionox
- Origin
- Guangdong, China
- Supply type
- OEM / ODM
- Brand
- HXD LCD
- Screen dimensions
- 69.74*126.60*0.84
- Backlight
- Self-luminous
- Luminance
- 350CD/m2
- Controller / Driver
- GT1151
- MOQ
- 10pcs
- Lead time
- 15 days
Gallery
Product images
All product images uploaded through the admin.
Frequently asked questions
Can the 5.44”FHDAMOLED be customized?
Yes. HXD-LCD can evaluate interface, FPC, touch panel, cover glass, backlight and mechanical customization based on project requirements.
Is a datasheet available for the 5.44”FHDAMOLED?
The latest available datasheet can be downloaded from this product page or requested from the HXD-LCD sales team.
Does HXD-LCD support samples and mass production?
Yes. Sample evaluation and volume-production support are available, subject to model availability and project review.
